Permanent, on-the-fly coding and marking with speeds of up to 500 m/min in extrusion or rewinding applications. Domino’s ELCS provides maximum uptime with its unique product guidance system, helping to ensure high code quality

The ideal plug-and-play solution providing high-quality coding of extrusion products by offering a perfect product guidance system

Domino Extrusion Laser Coding Station coding onto wires

Cables, wires, pipes, hoses, tubes,…

High-quality text marking at predefined distances along continuous applications with Domino's lasers.

Track and trace coding

Meet product track and trace requirements with high-speed, high-quality coding from Domino’s laser coders.

Domino’s new, innovative Extrusion Laser Coding Station (ELCS) supports coding requirements in extrusion and rewinding applications. The ELCS offers a CO2 or a fiber laser solution combined with product guidance, length measurement, and high-resolution encoder systems, to provide high-quality coding onto a wide variety of extrusion products, including cables, wires, tubes, and hoses.

This laser solution is ideal for permanent coding requirements in extrusion and rewinding applications. The system is capable of handling product diameters from 0.8 mm to 50 mm without requiring focus adjustment when switching between products of different sizes. The ELCS also features a unique lump transfer system for knots and lumps of up to 50 mm diameter, allowing products to pass freely without stopping the production line. The ELCS is a plug-and-play solution which has been specifically designed to suit various installation needs, and for easy integration into existing production lines. The ELCS features hard-wearing guidance parts, which do not require maintenance; and with laser technology, there is no need for inks, solvents, or regular servicing.

Prevent Waste

Prevent Product Waste & Rework

On the-fly-marking with up to 500 m/min

Ideal for permanent coding requirements in extrusion or rewinding applications

Meet Deadlines

Consistently Meet Deadlines & Production Quotas

Waste reduction and minimizing costs

Reducing product waste and avoiding downtime due to the unique lump transfer system

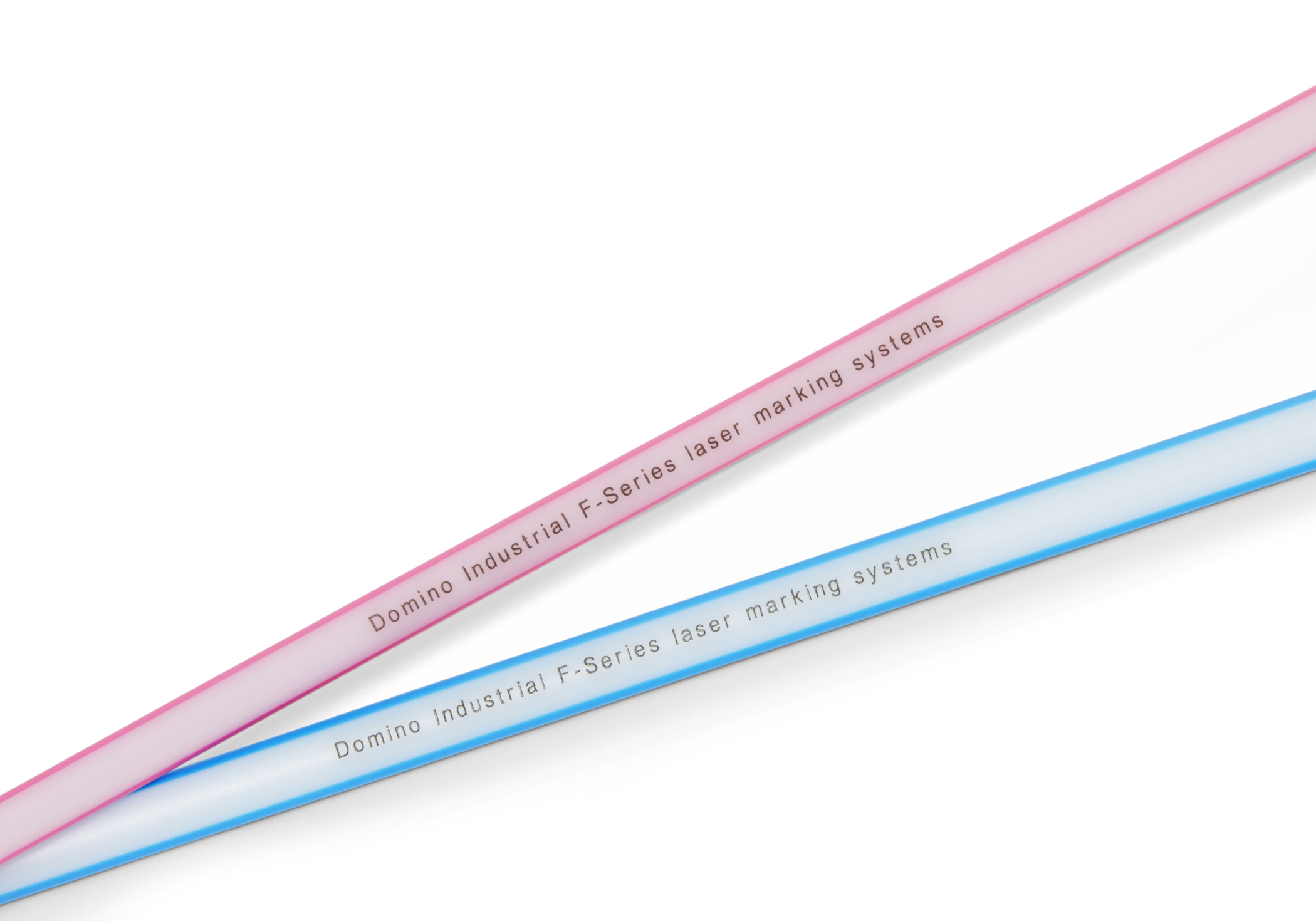

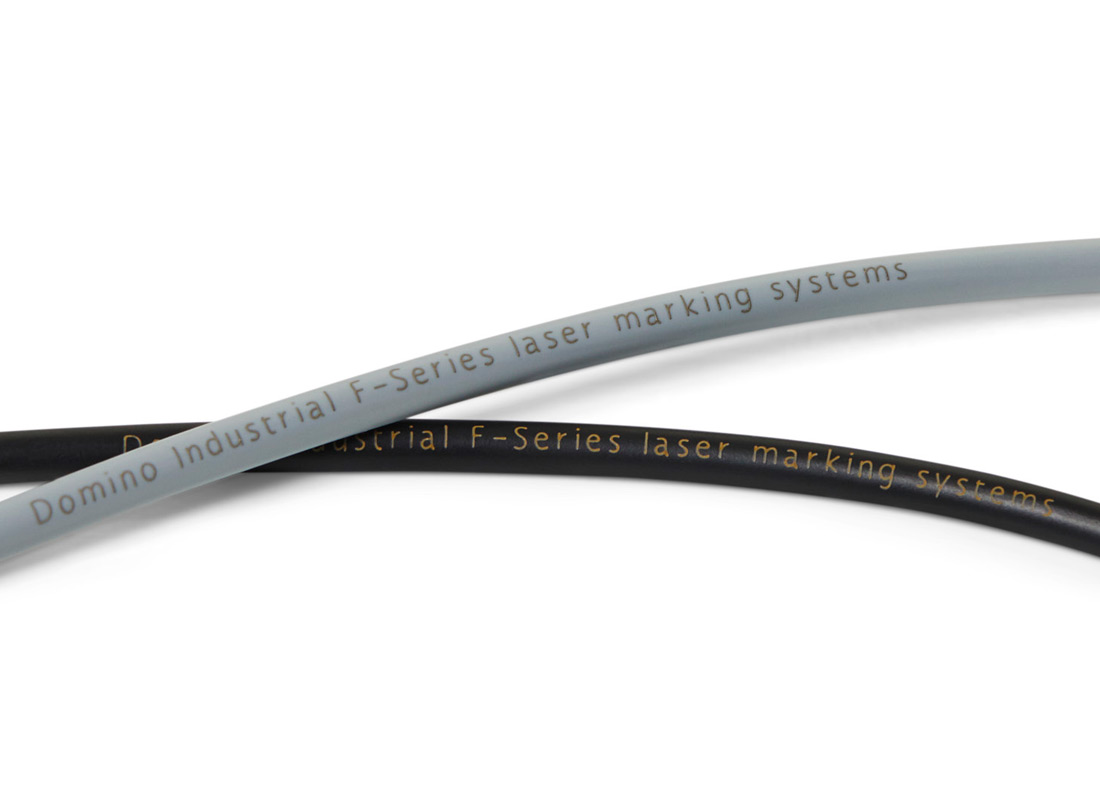

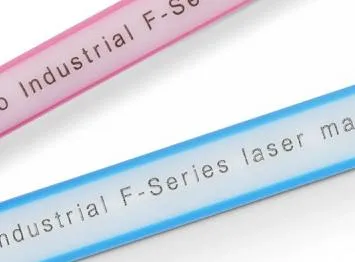

Extruded wires with laser marked product codes

High Code Quality

Our Extrusion Laser Coding Station contains a particularly stable and precise product guidance system, making focus adjustments when changing between products a thing of the past. The product guidance system also lets knots and lumps pass easily without compromising the safety of operatives, or risking damage to the laser.

Plug-And-Play Solution

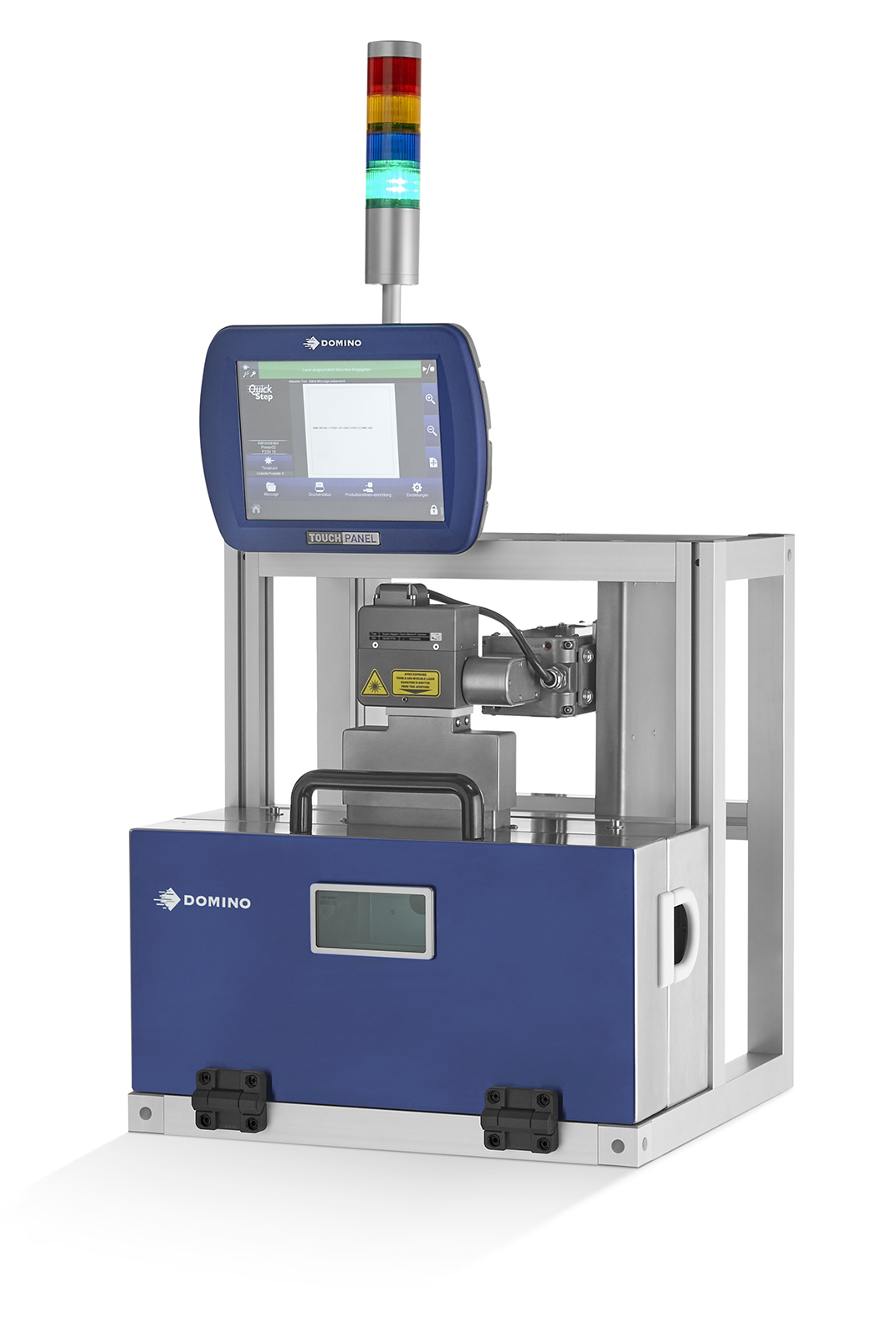

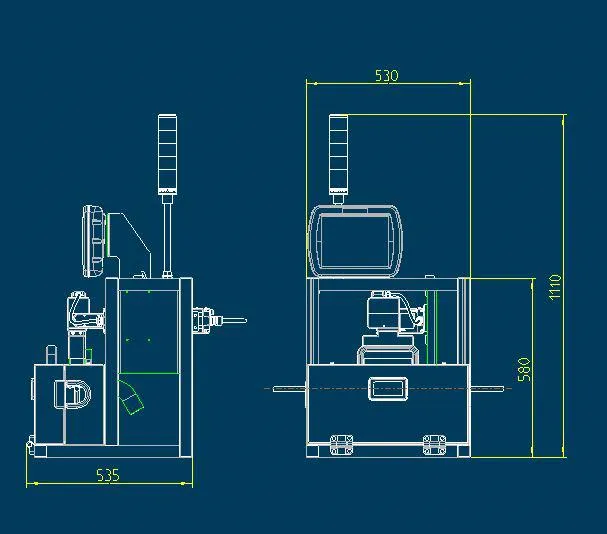

The ELCS table top version is a complete laser printing station with a length measuring system, stable product guidance system, and provides laser safety Class 1. It can easily be placed on a customer-specific stand or table. Check our brochure to learn more.

Modular Design

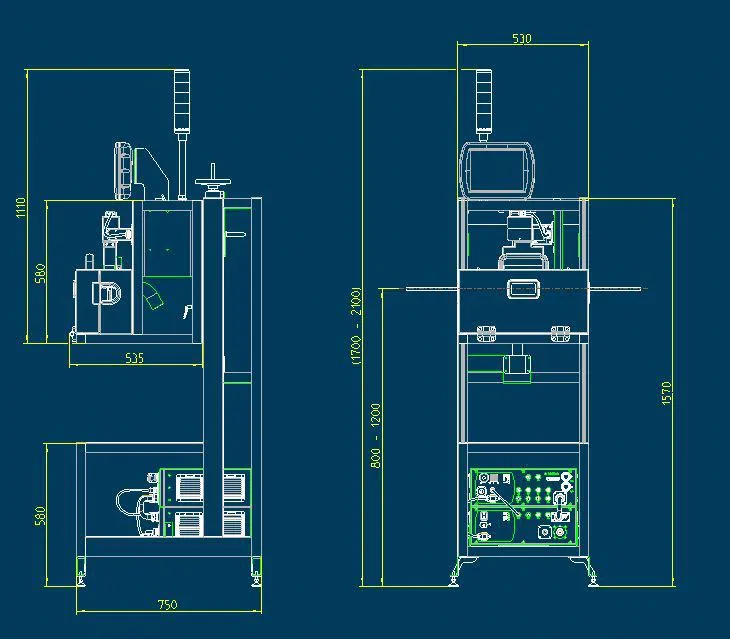

The table top variant can easily be mounted on a height-adjustable rack. In addition to height adjustment and ground clearance, this ELCS solution has a width of just over 500 mm and is therefore easy to fit into existing production lines.

Domino Extrusion Laser Coding Station

Downloads

Domino - Extrusion Laser Coding Station Flyer (1.25MB)
