Thermal Transfer Overprinting

Coding on flexible packaging has never been easier

Get in touch
Printhead width

32mm

32mm

53mm

53mm

Print Area(IM)

32x55mm

32x75mm

53x75mm

53x75mm

Print Area(CM)

32x55mm

32x100mm

53x100mm

53x500mm (standard)

53x750mm (enhanced pack)

Show More

Code print quality

300dpi

300dpi

300dpi

300dpi

Maximum Print Speed (IM)

Up to 400mm/sec

Up to 600mm/sec

Up to 600mm/sec

Up to 600mm/sec

Maximum Print Speed (CM)

10 to 680 mm/sec

10 to 750 mm/sec

10 to 750 mm/sec

10 to 750mm/sec (standard)
10 to 1200mm/sec (enhanced pack)

Maximum repeat rate

4 prints/sec

6 prints /sec

6 prints/sec

8.3 prints/s

Ribbon Saving Modes (IM)

Economy, Retraction, Column

Economy, Retraction, Column

Economy, Retraction, Column

Economy, Retraction, Column

Ribbon Saving Modes (CM)

Economy, Retraction, Column, Stop-mid print

Economy, Retraction, Column, Stop-mid print

Economy, Retraction, Column, Stop-mid print

Economy, Retraction, Column,  Stop-mid-print

Supported code formats

EAN, GS1, UCC, QR code, Data Matrix, Han Xin, ITF, Code128, text, graphics, 1D, 2D codes etc.

EAN, GS1, UCC, QR code, Data Matrix, Han Xin, ITF, Code128, text, graphics, 1D, 2D codes etc.

EAN, GS1, UCC, QR code, Data Matrix, Han Xin, ITF, Code128, text, graphics, 1D, 2D codes etc.

Code128, Data Matrix, GS1-128, GS1(DB) Expanded Stacked, QR-Code, UPCA

Compressed air required

Not required

Not required

Not required

Not required

Cassette ribbon loading
QuickStep - simple user interface
PC label design software included
Performance packs (optional)

Not Applicable

Dynamark Serialisation Pack, Advanced Security Pack, Enhanced Promotional Coding Pack

Dynamark Serialisation Pack, Advanced Security Pack, Enhanced Promotional Coding Pack

Enhanced pack

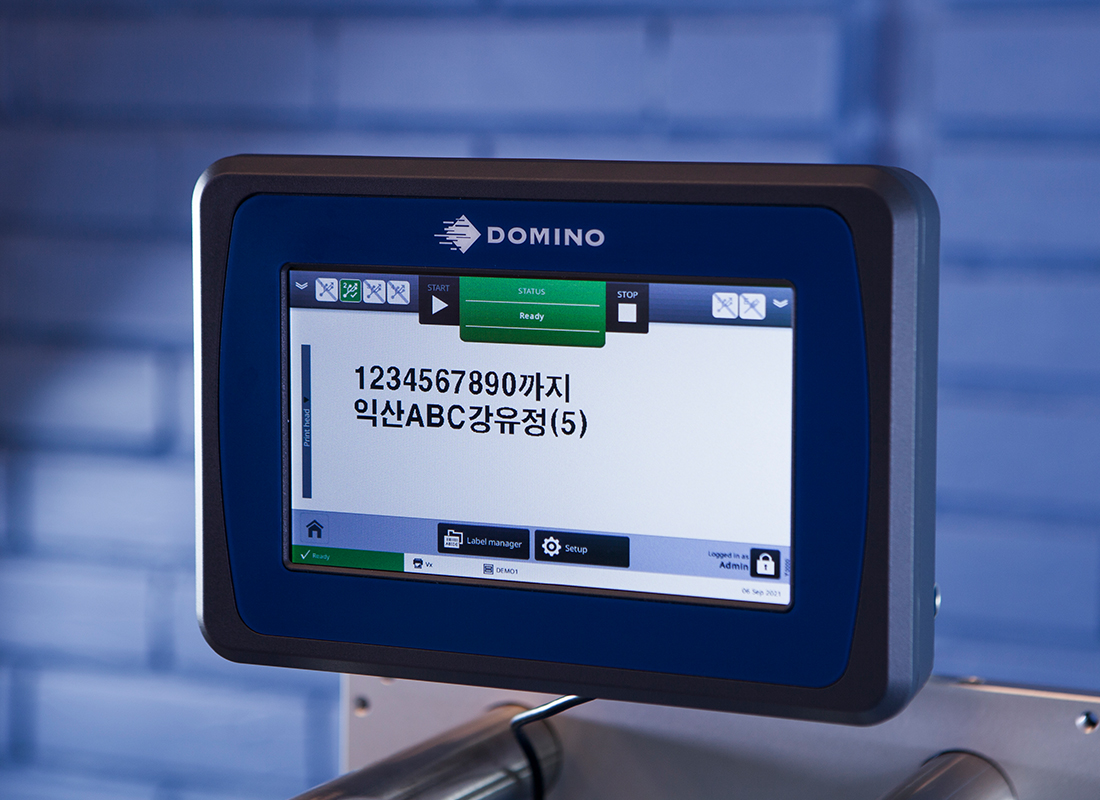

Optional interface

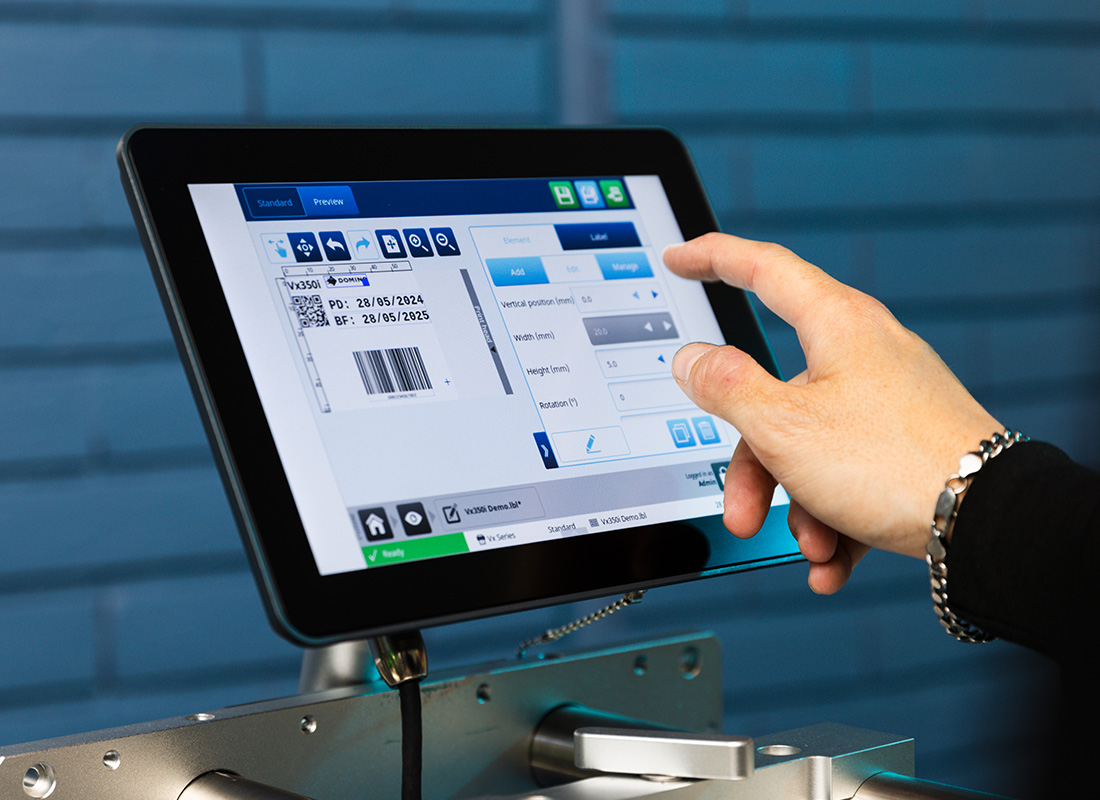

TouchPad; 7inch touchscreen

TouchPad; 7inch touchscreen

TouchPad; 7inch touchscreen

TouchPanel 6; 10.1-inch touchscreen

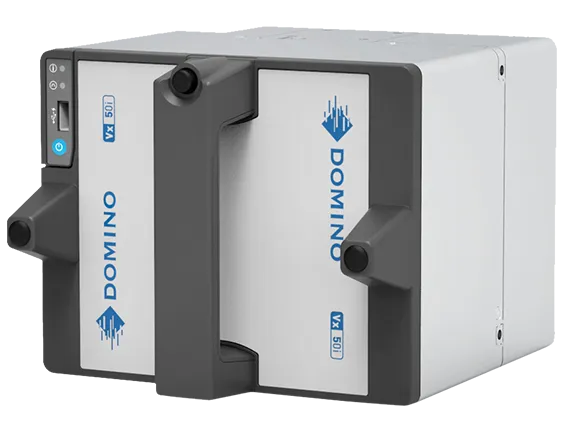

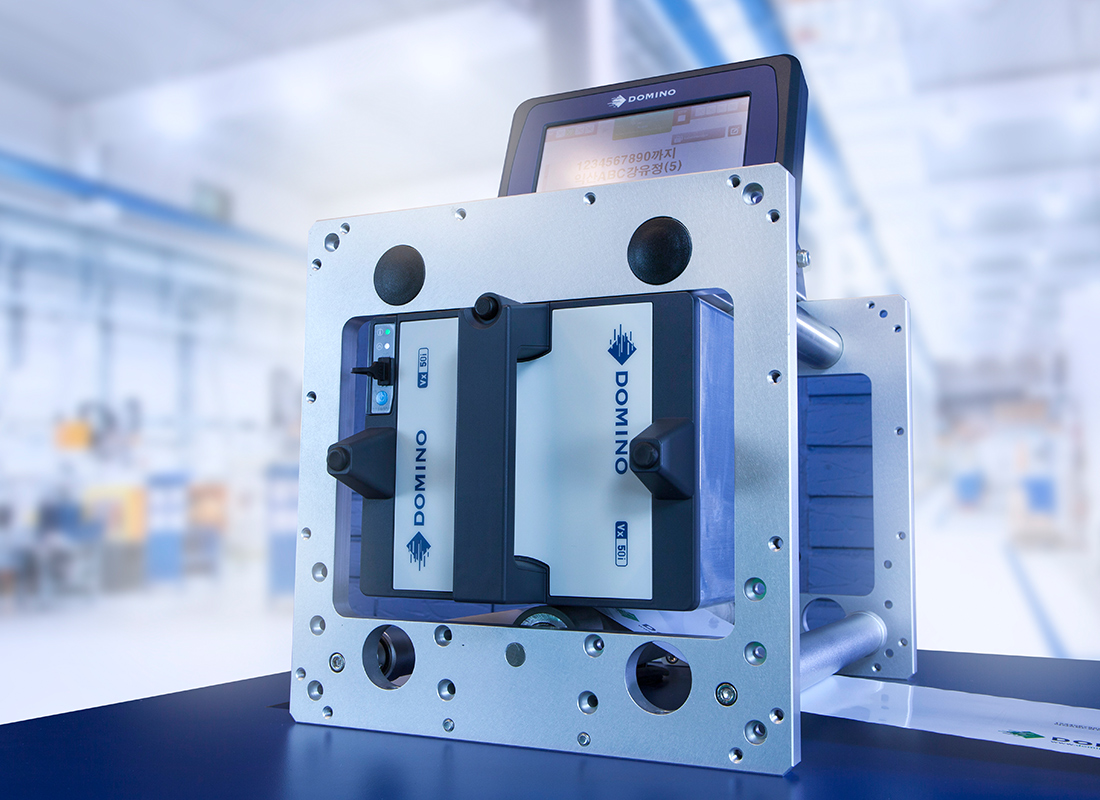

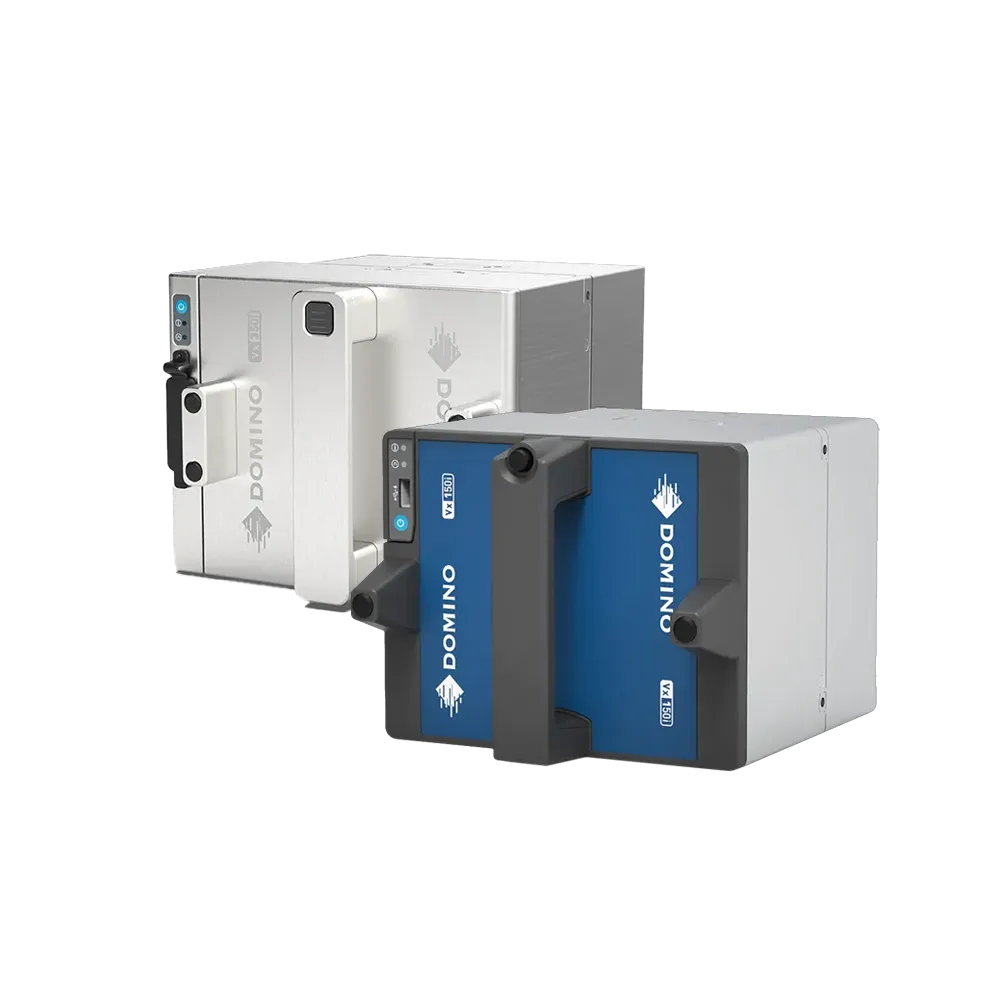

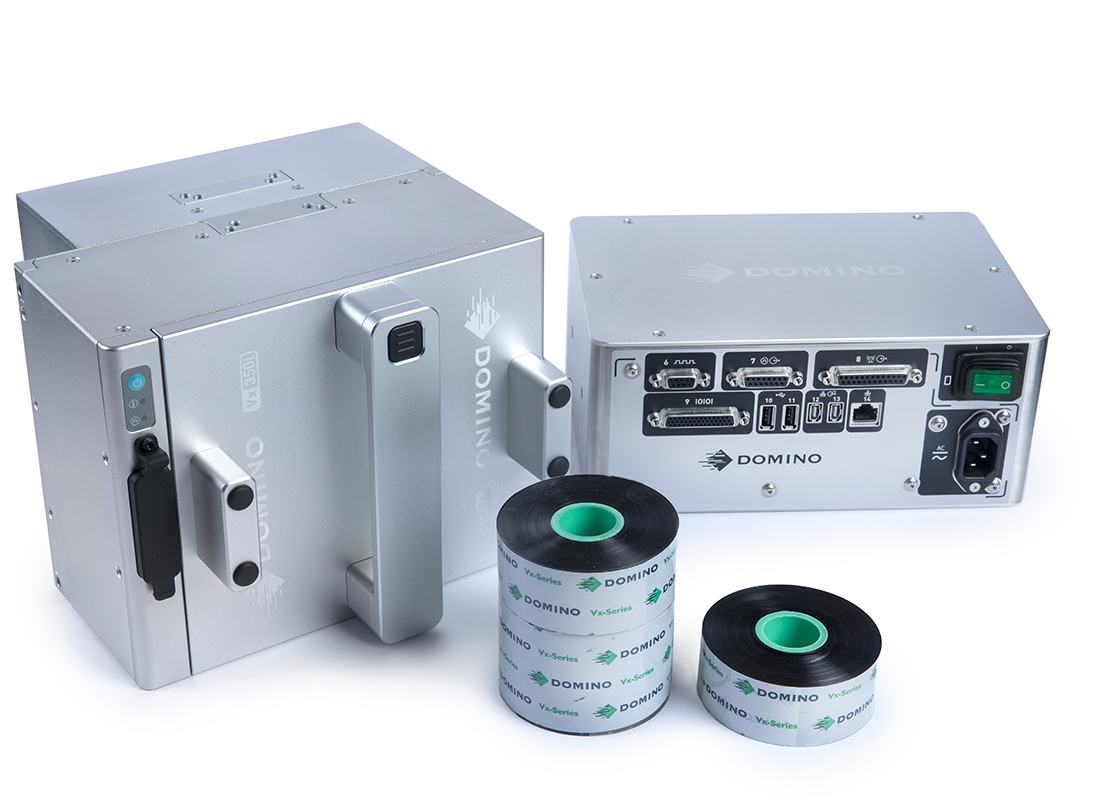

Why choose Domino Vx-Series Thermal Transfer Overprinting?

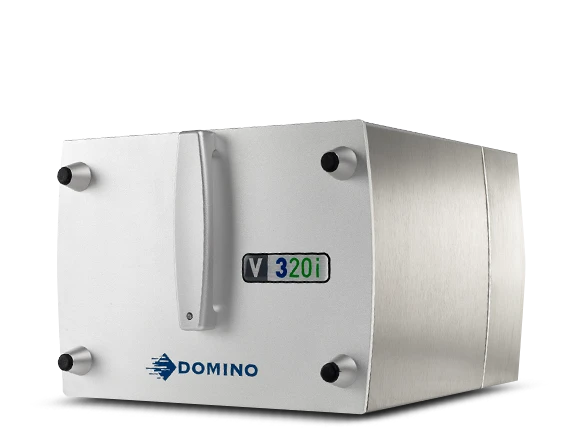

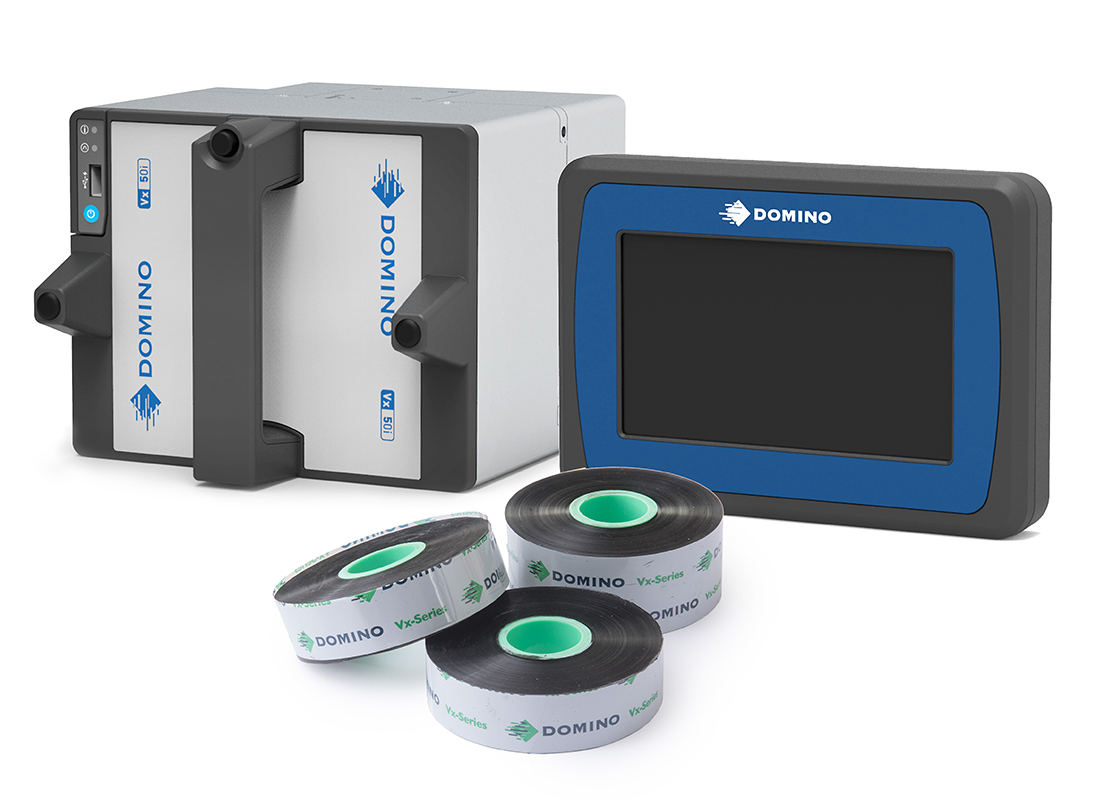

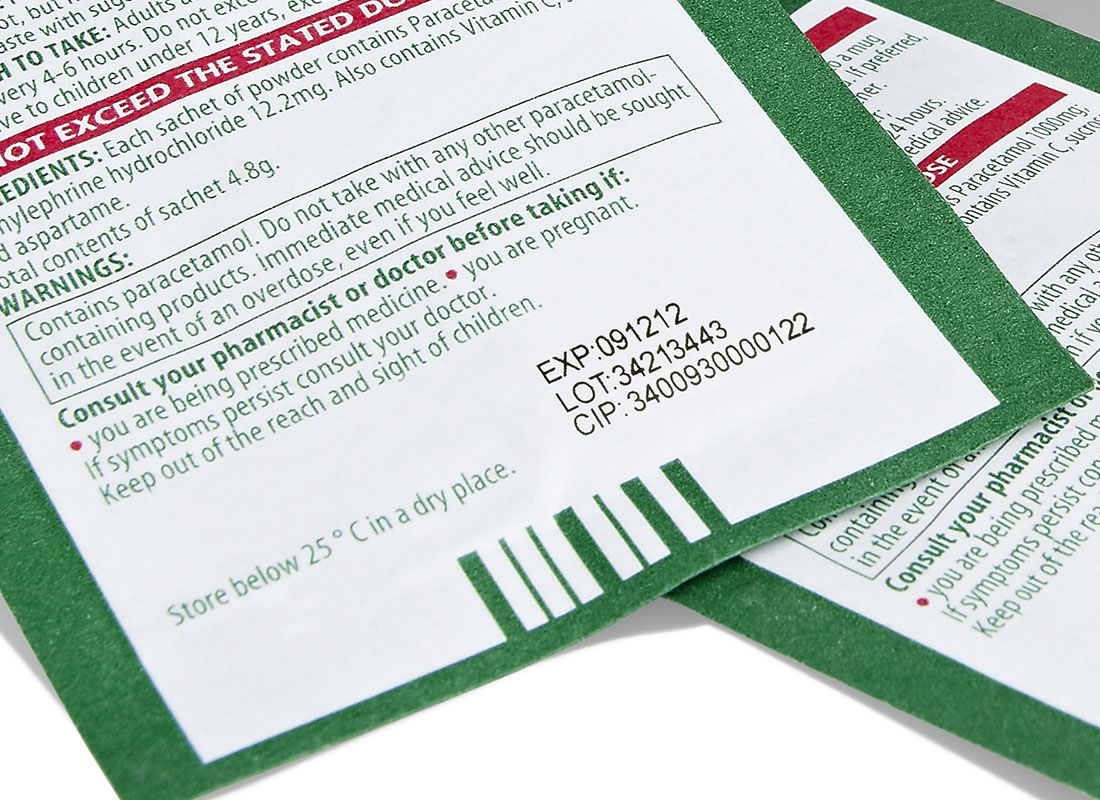

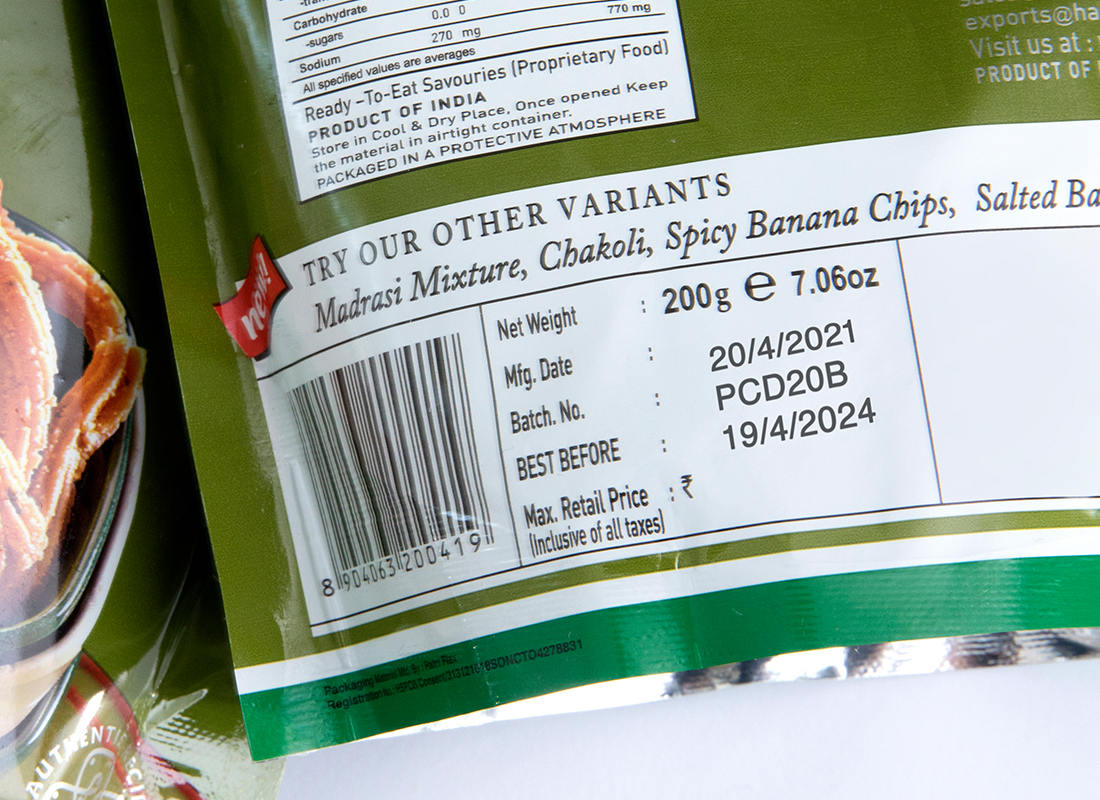

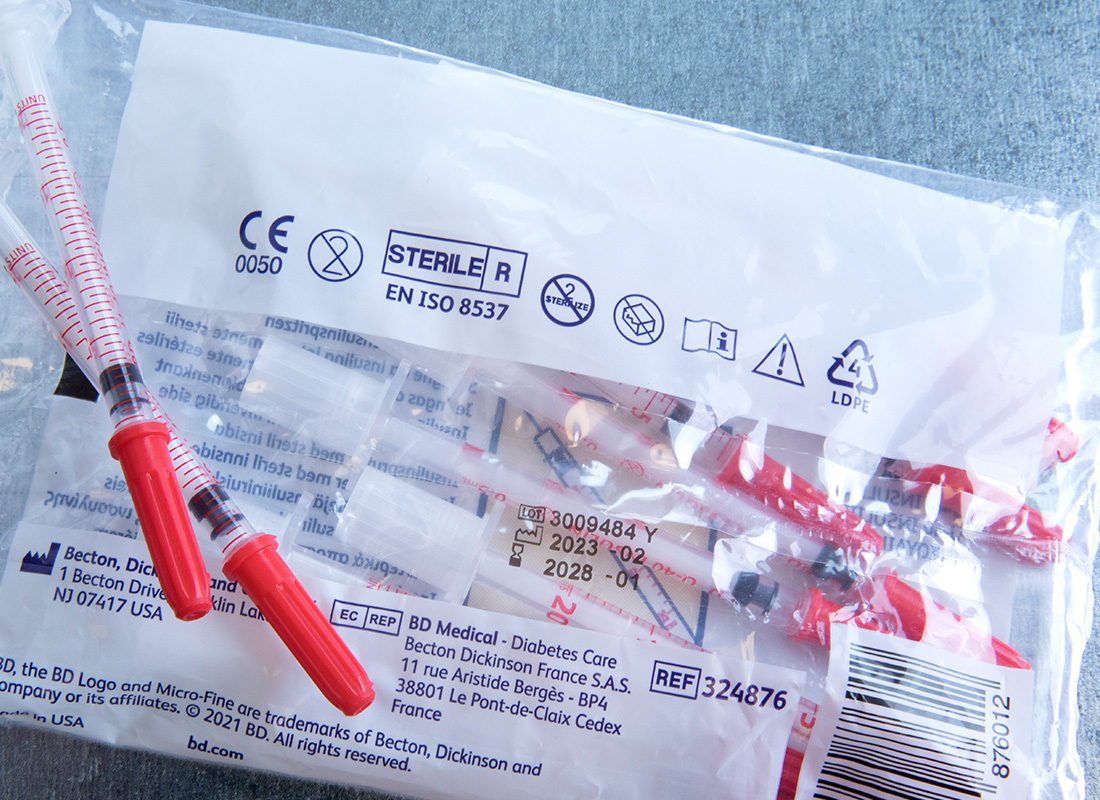

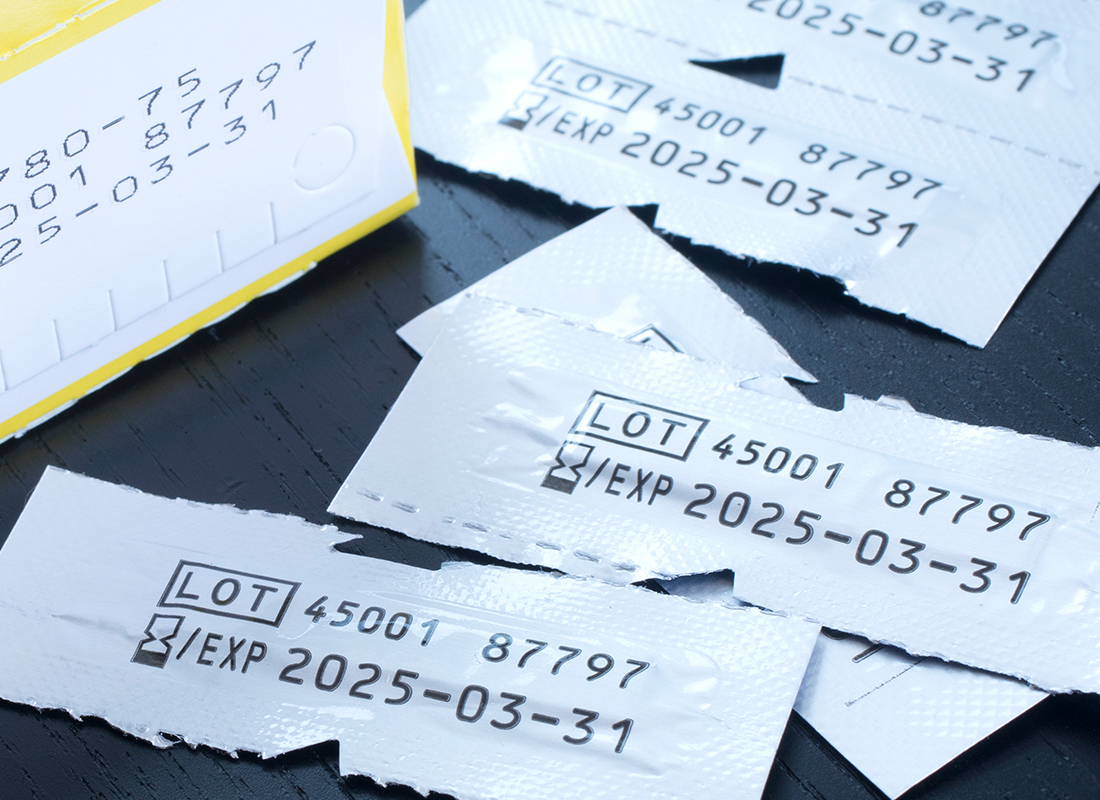

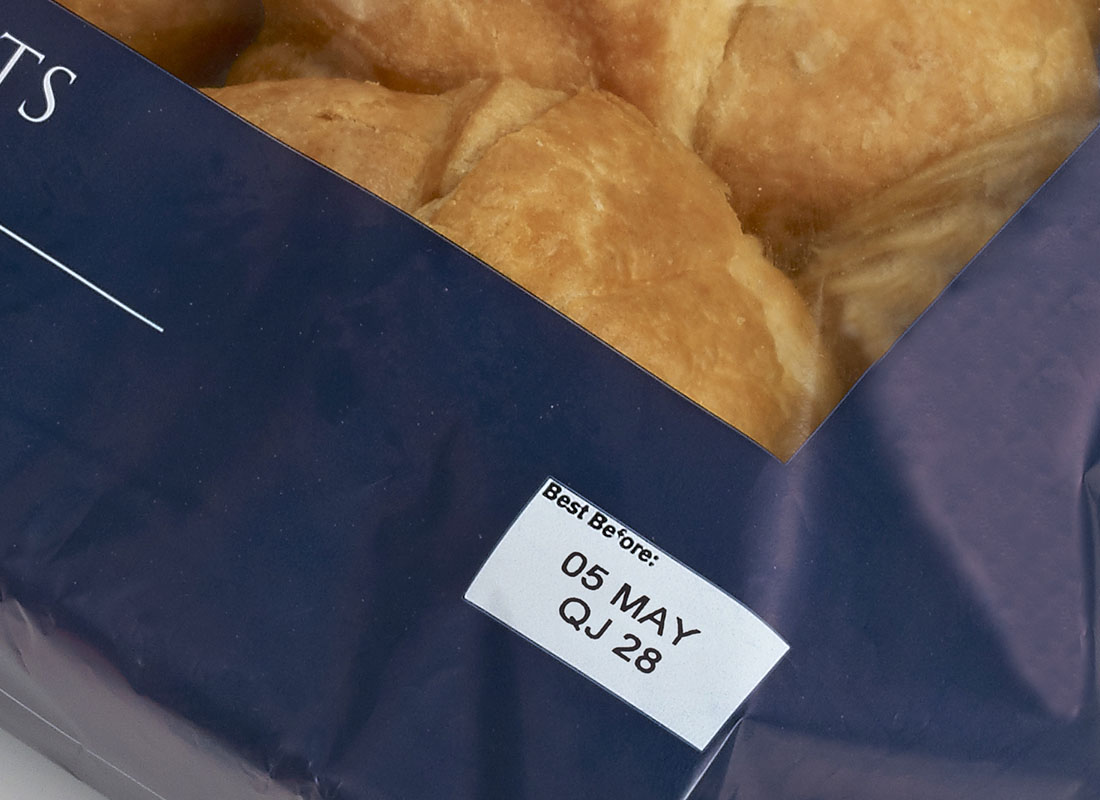

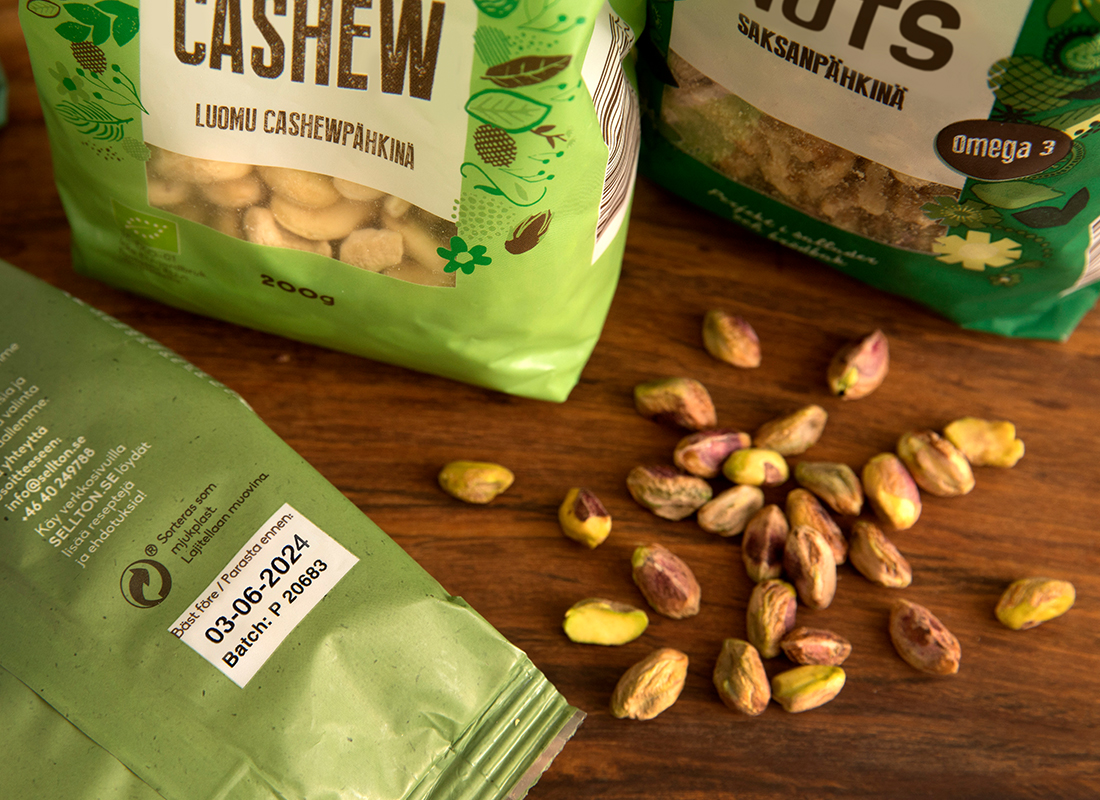

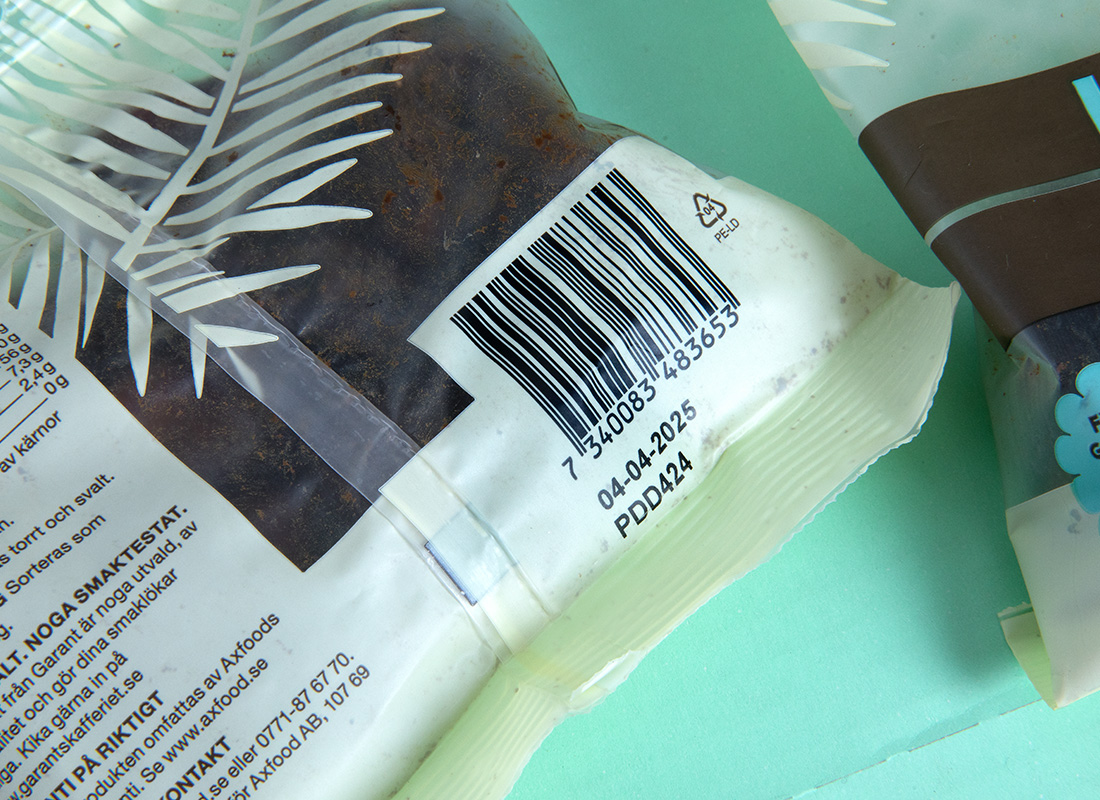

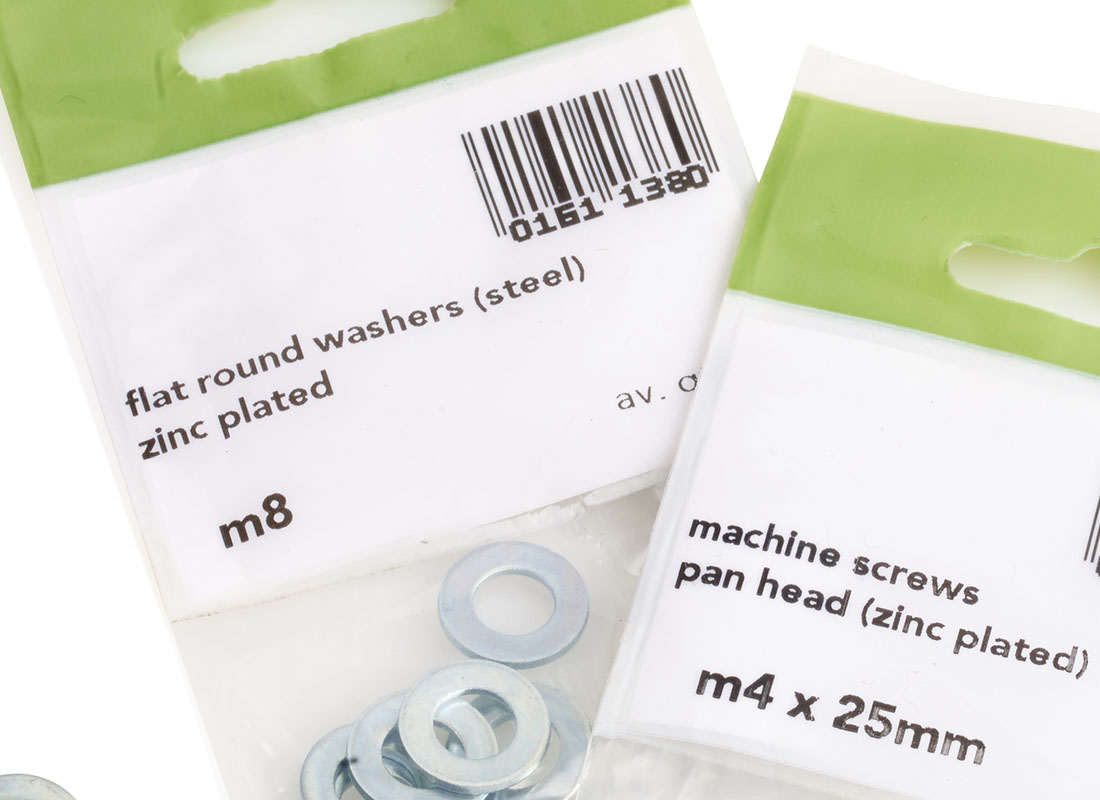

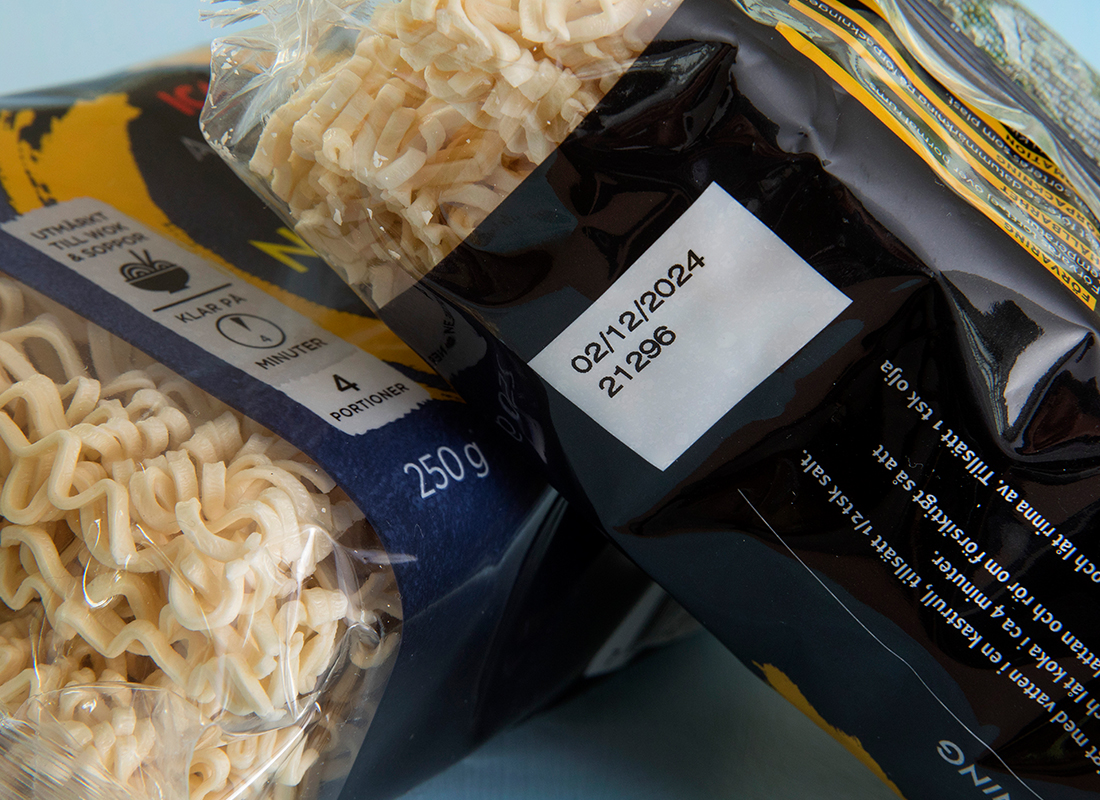

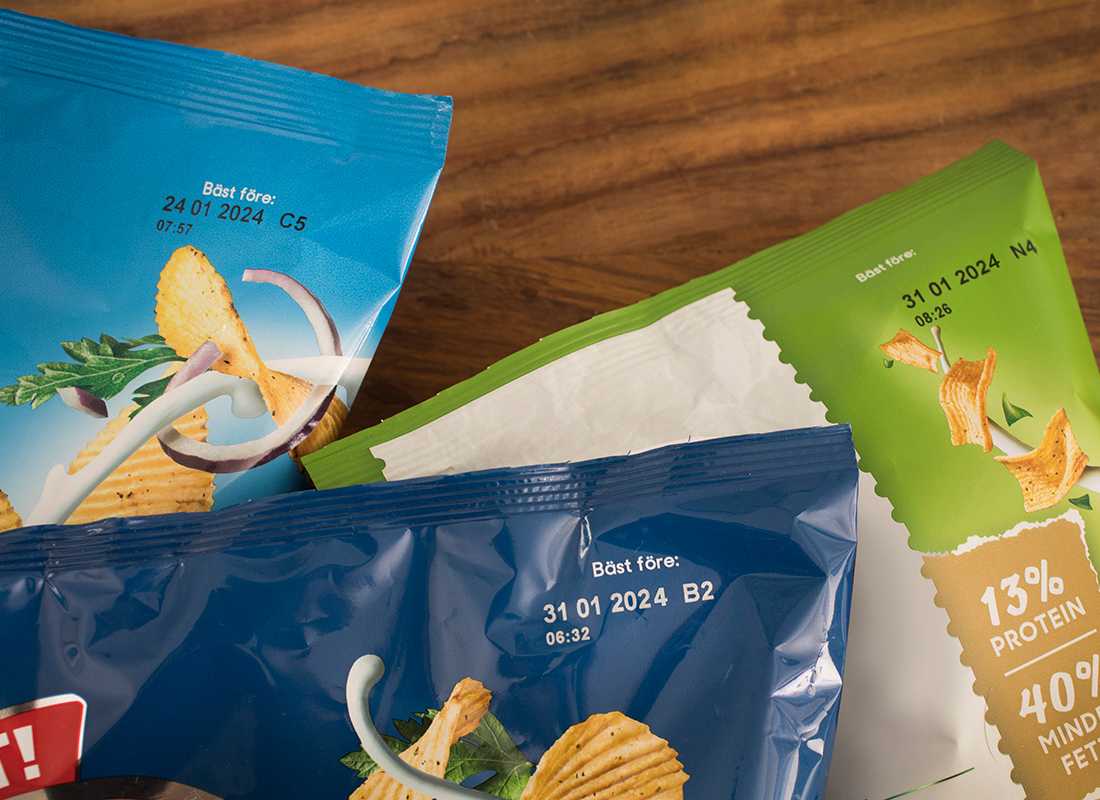

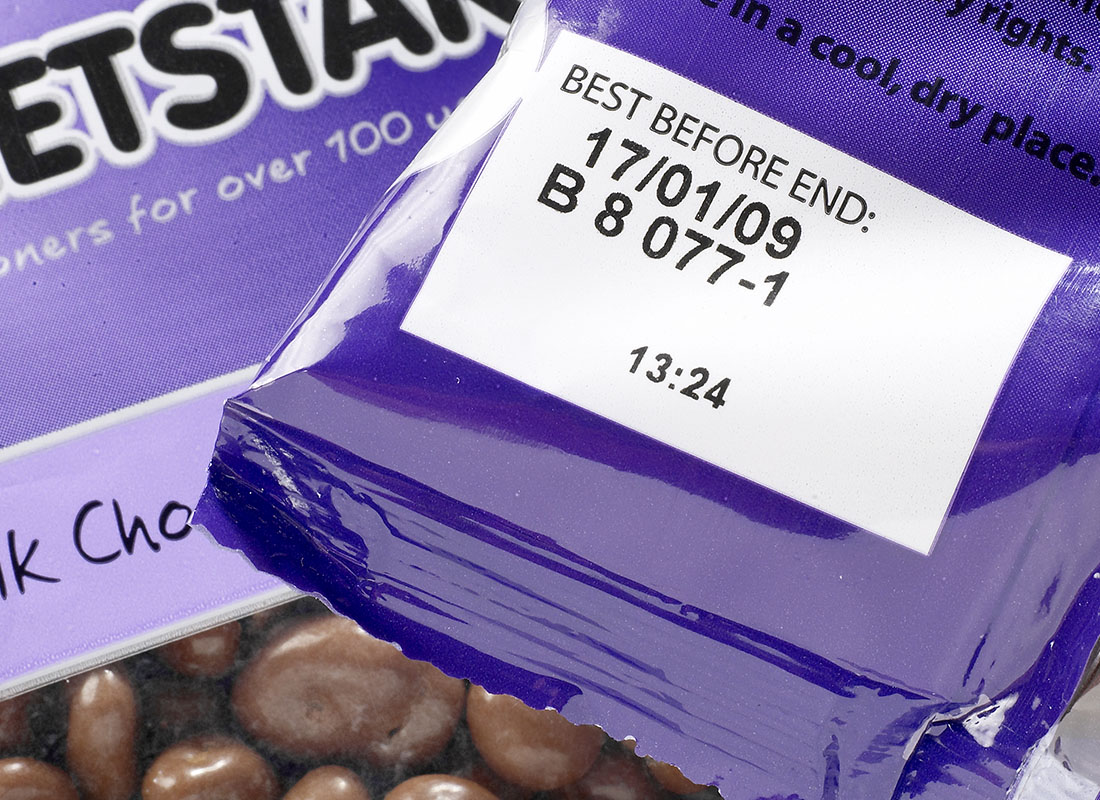

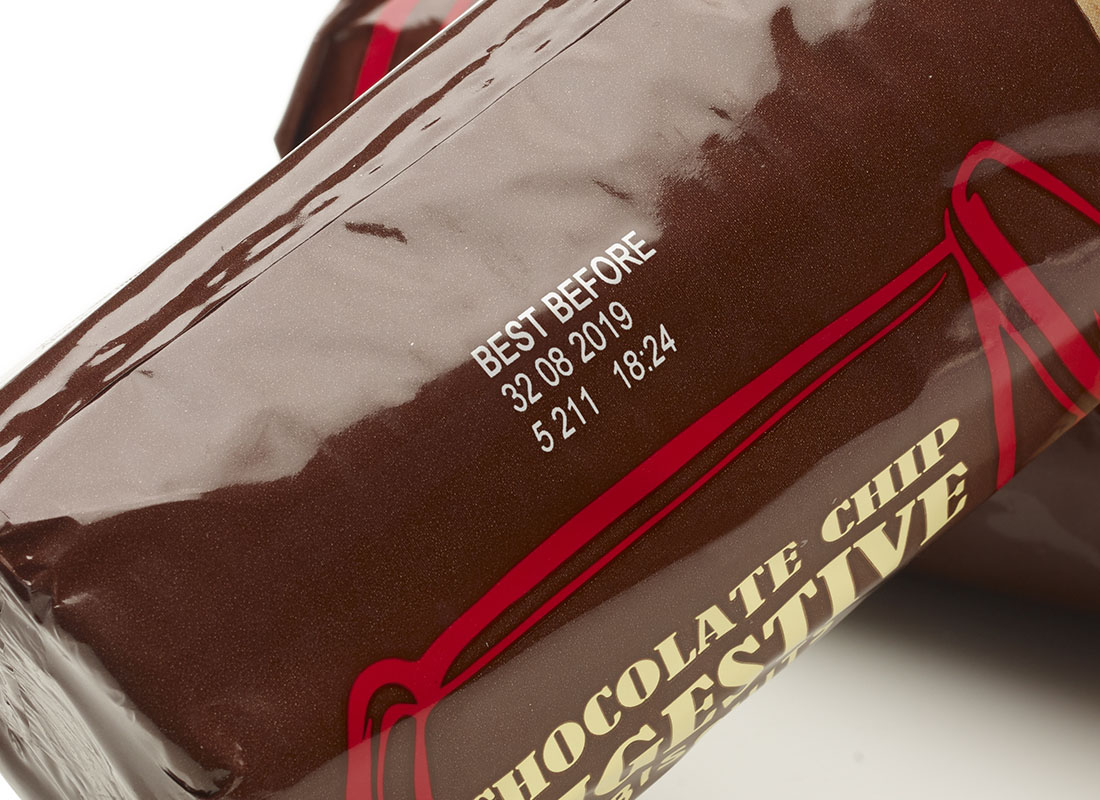

Domino's range of thermal transfer overprinters (TTO) can print real-time and variable data, machine-readable codes, texts, graphics and logos onto your flexible packaging films and labels. Easily integrated to packaging and processing equipment such as labellers, tray sealers, flow wrappers, VFFS, HFFS, and baggers, the printer will help you ensure your need for traceability and anti-counterfeiting is met. Designed for crisp, clear coding, our Vx-Series and V-Series delivers high resolutions at fast speed.

Our thermal transfer overprinters keeps total cost of ownership low. With a strong commitment on making the operators day-to-day life as easy as it should be, your Domino TTO equipment will ensure you minimise downtime and maximise throughput.

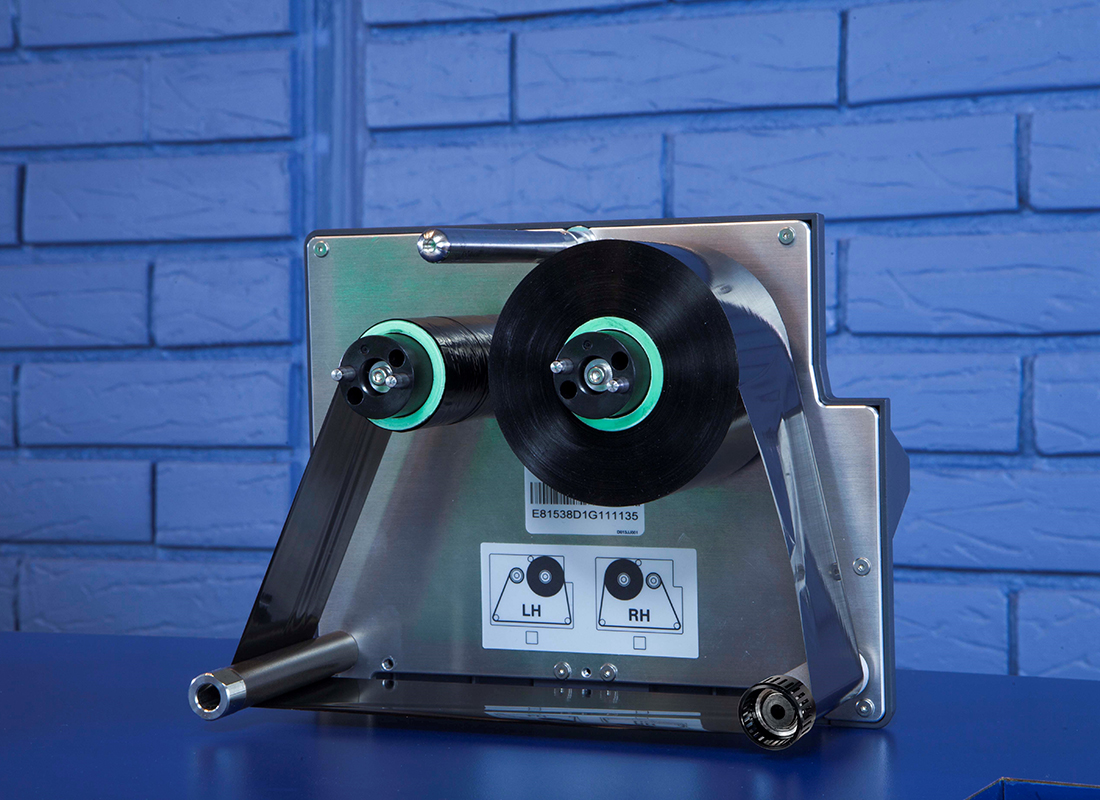

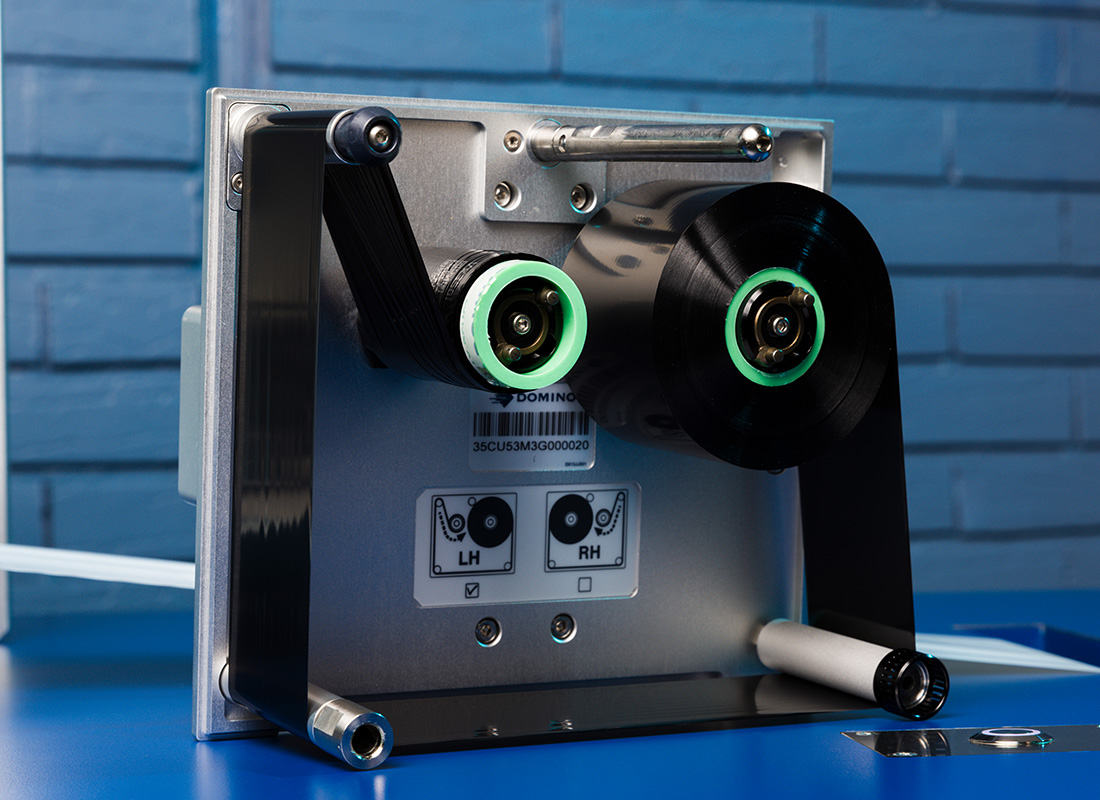

  • Cassette-based ribbon loading
  • Sharp print images thanks to 300 dpi resolution
  • Texts, graphics and all common 1D, 2D and matrix codes (including GS1 Digital Link)

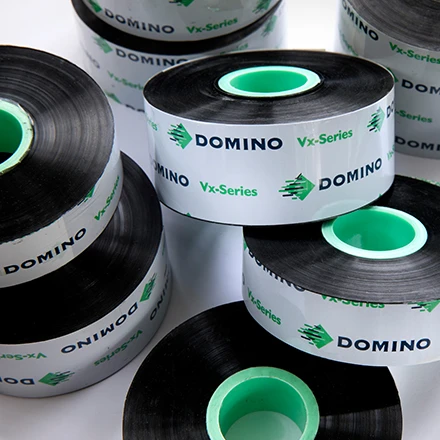

  • Long ribbon roll capability

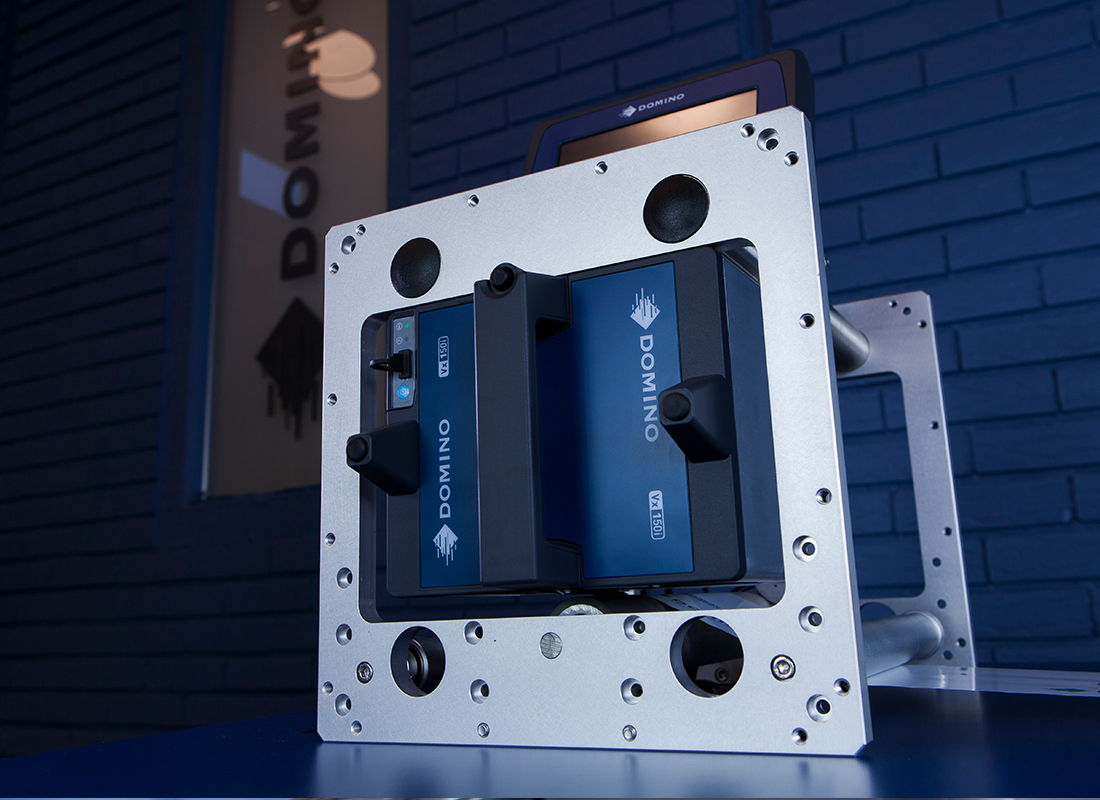

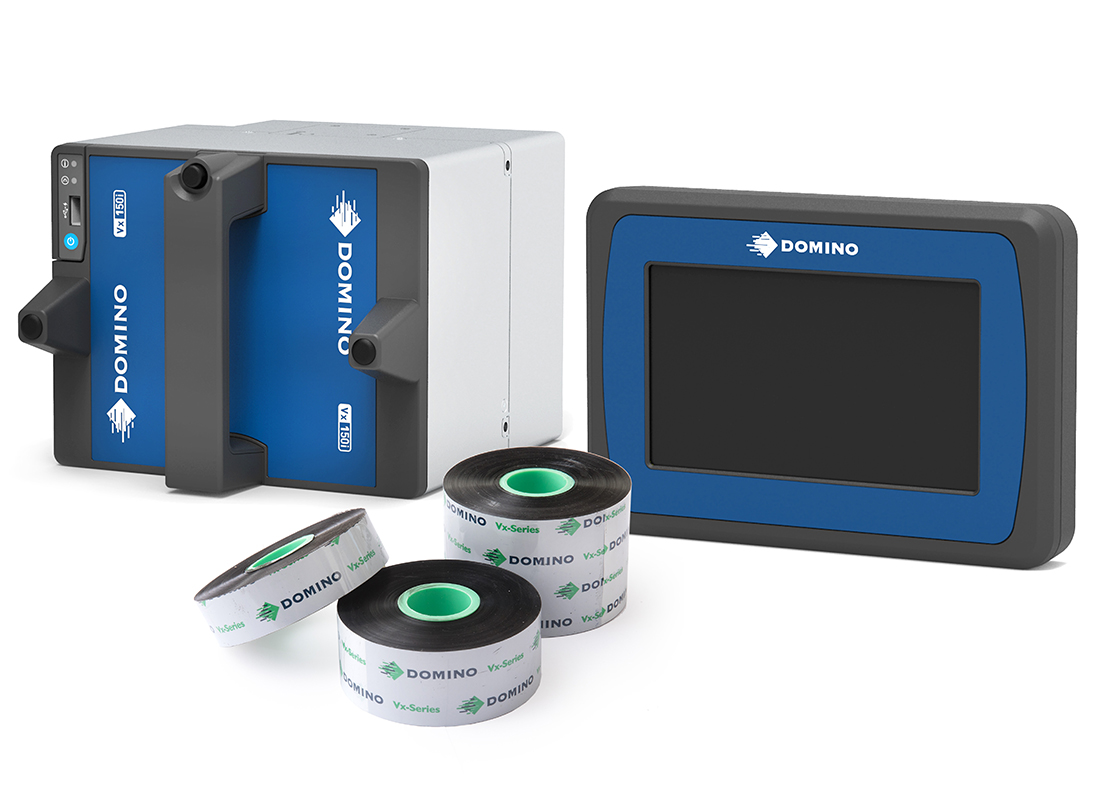

  • Quickly switch between print widths (Vx150i)
  • Inermittent and Continuous mode in one system
  • No compressed air

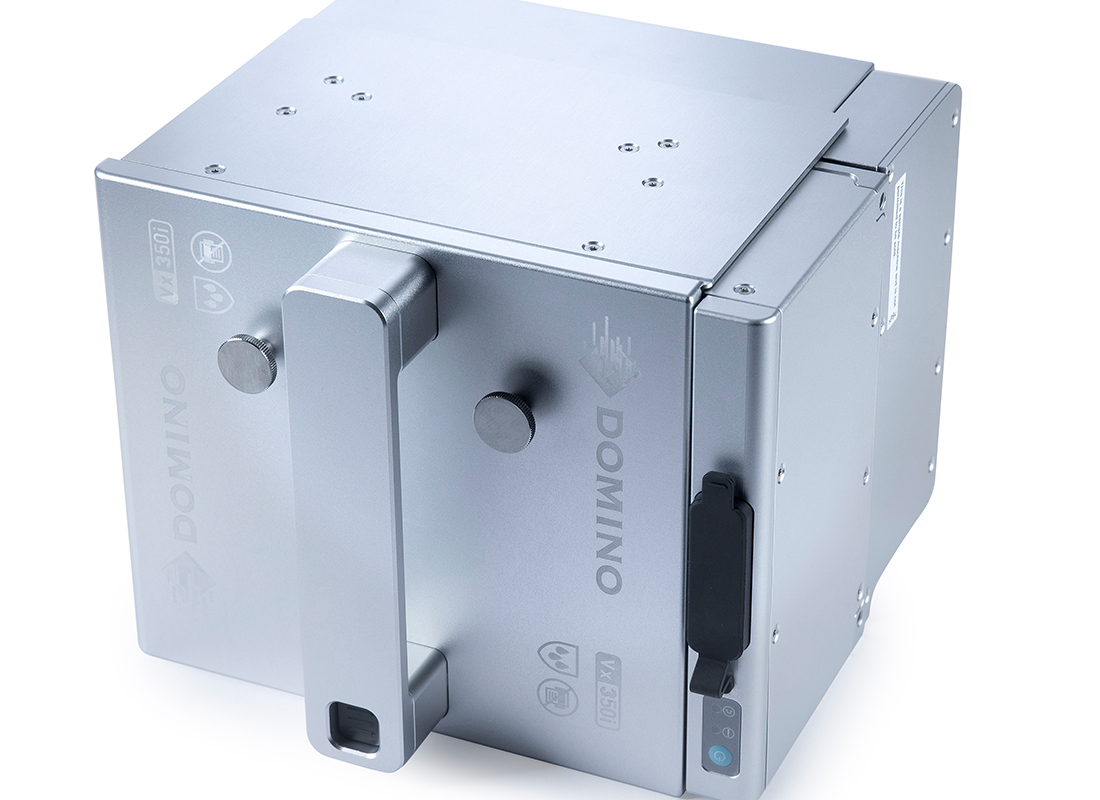

  • Compact footprint

Reduce waste, downtime and cost

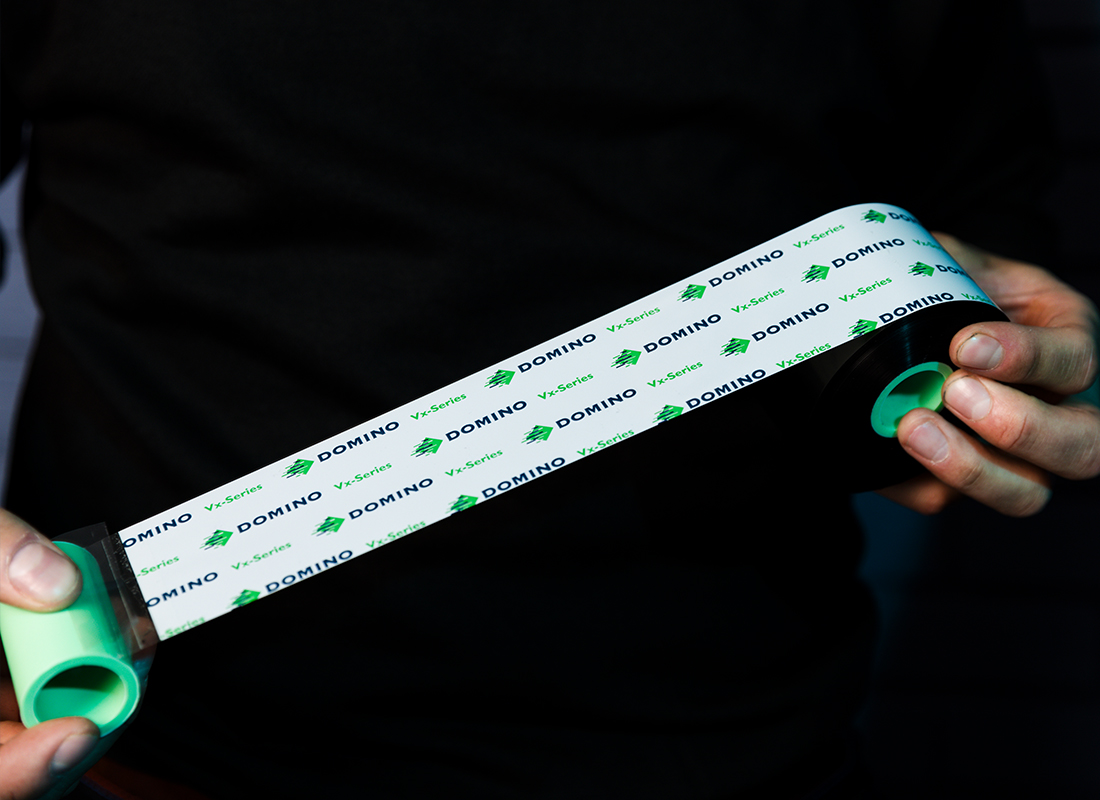

With the unique possibility to set the usage of the ribbons, you can reduce downtime, cost and waste, which contributes to your company's sustainability goals. Both Vx-Series and V-Series offers 4 different ribbon saving modes making it possible to save up to 60% of the ribbon consumption!



Simple operation & service beyond the ordinary

To maximize your production line efficiency, we support you with a comprehensive range of services and software:

  • SafeGuard service packages: For optimized total operating costs through calculable service and support for your coding systems.
  • Domino Cloud: As part of the SafeGuard packages, the cloud helps you prevent or resolve problems early using remote diagnostics, event alerts and remote monitoring.
  • Domino Relax: The leasing program for your coding and marking system for efficient and cost-effective printing operations.
  • Domino Automation: With Domino coding automation and print text creation software, you can quickly design print texts and centrally control their distribution.
