Gx-Series - Thermal inkjet (TIJ) printers - Clean. Clear. Coding.

Increase uptime with our easy to use, high-resolution TIJ printers

Get in touch

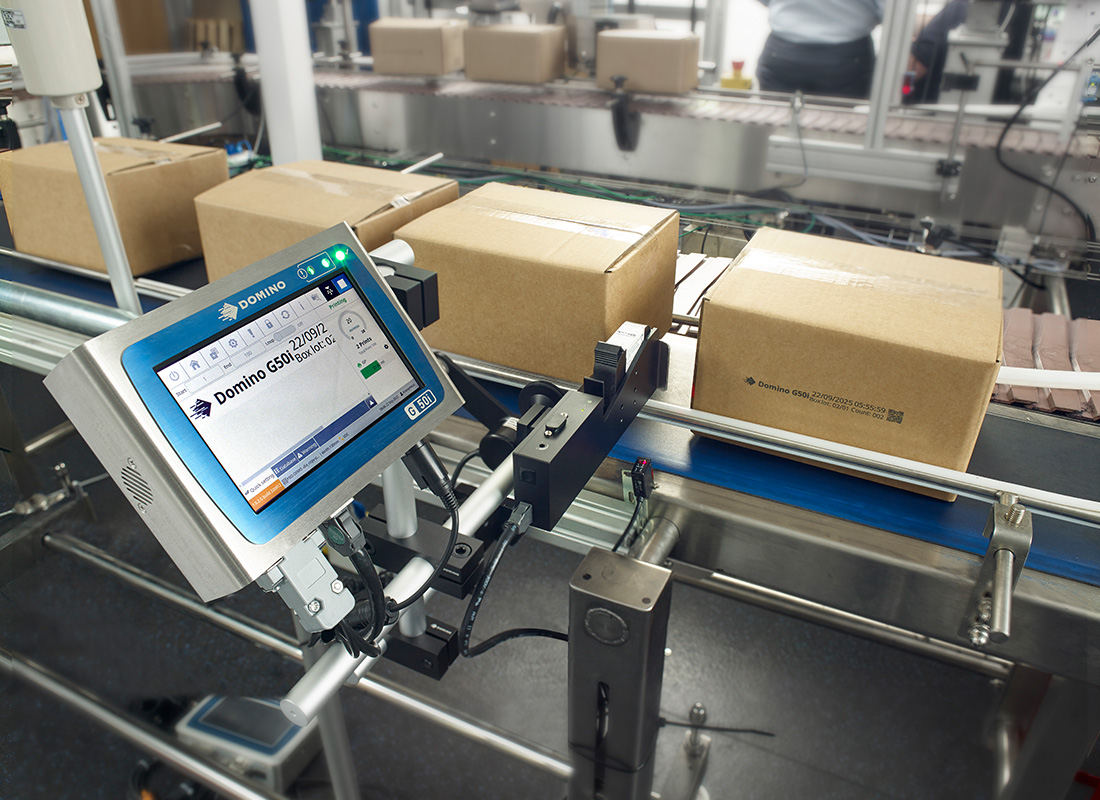

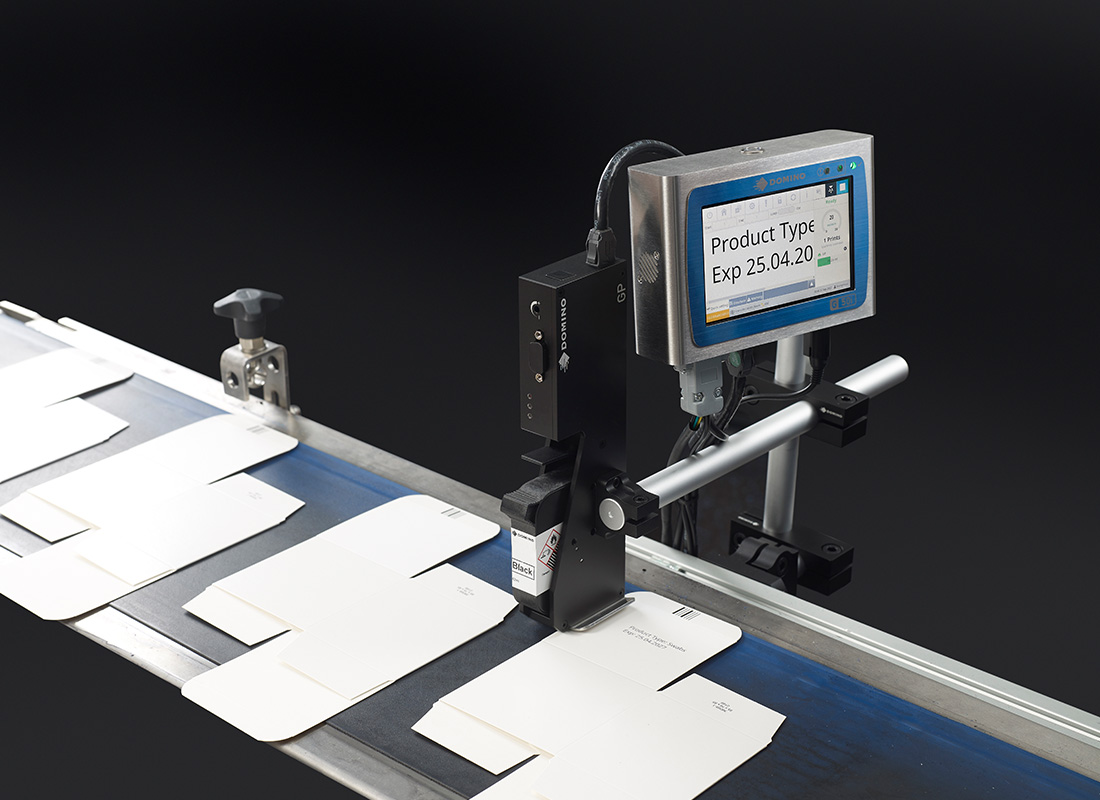

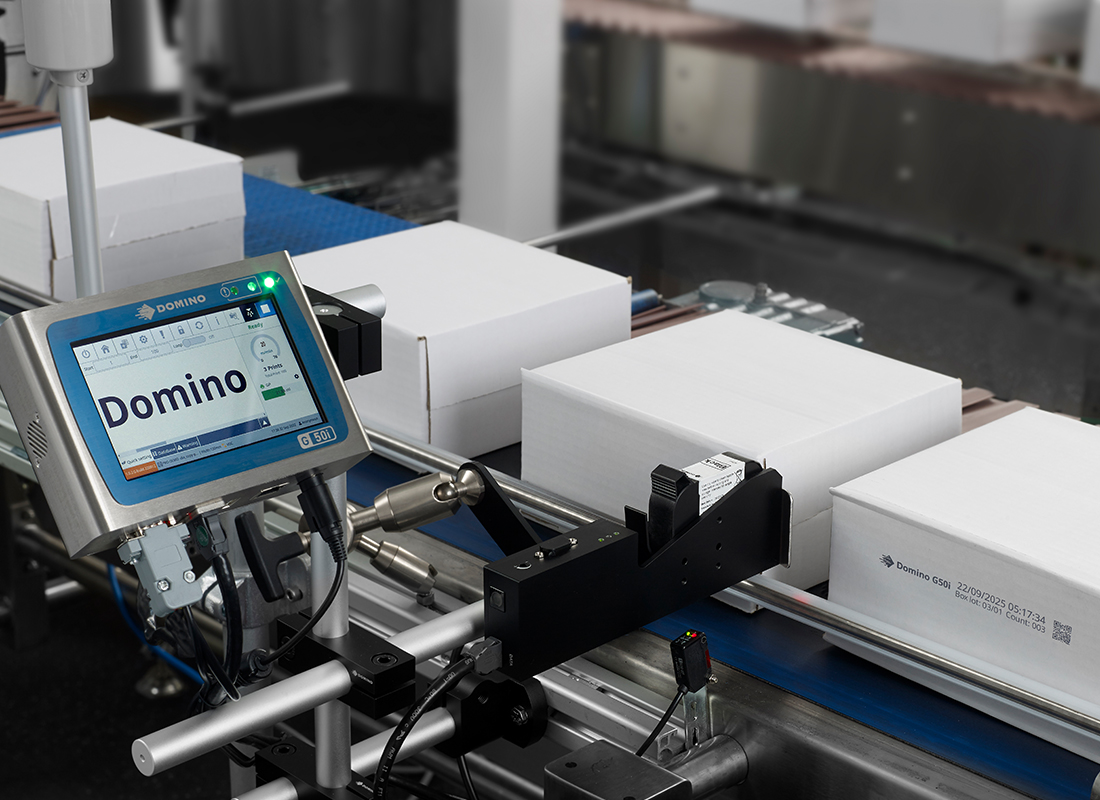

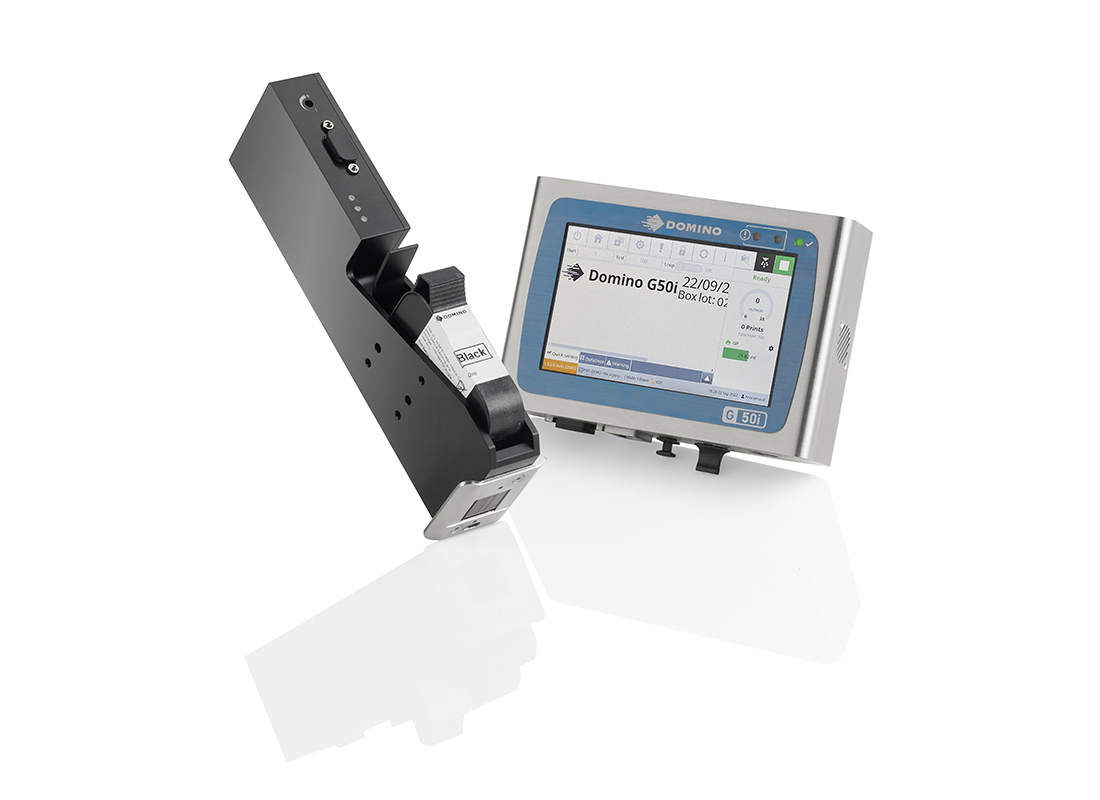

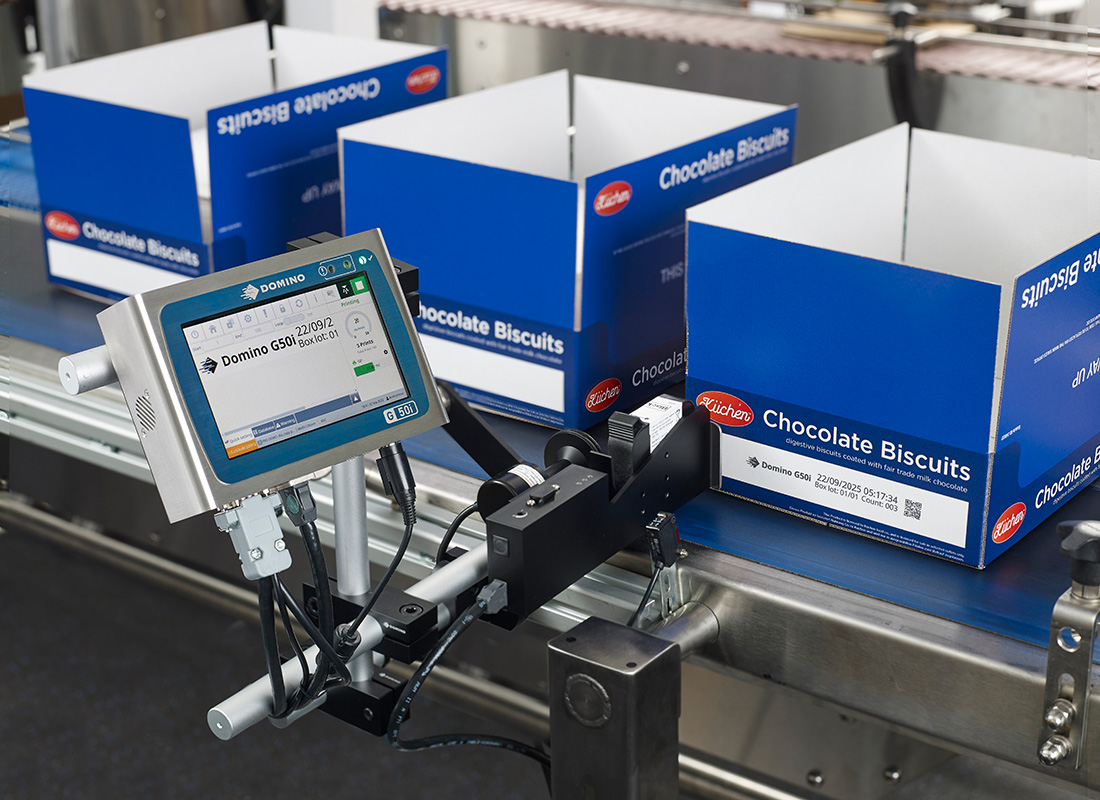

A self-installed, high-resolution TIJ printer for your primary packaging and outer case coding needs

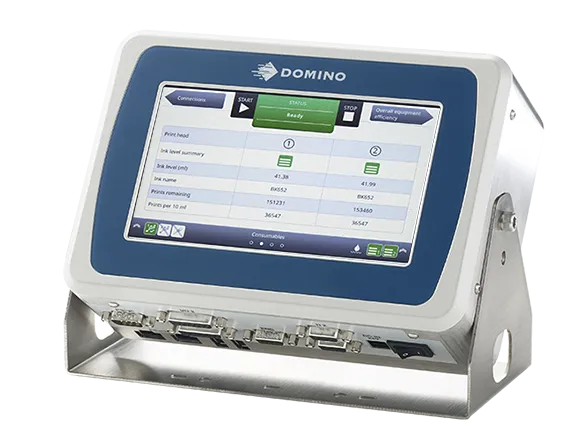

The all-rounder for thermal inkjet coding at speed in graphic quality

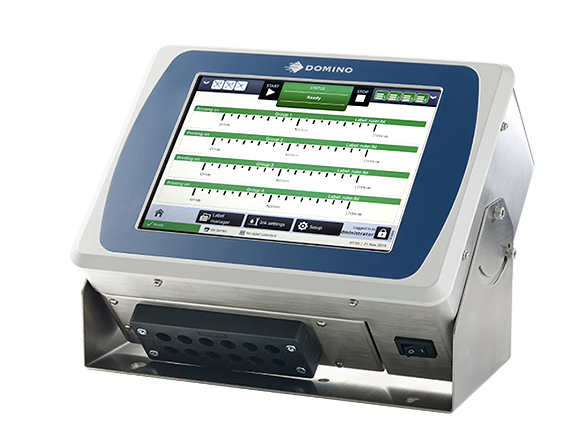

The ideal choice for item level serialisation and fast data transfer, controlling up to 4 print heads

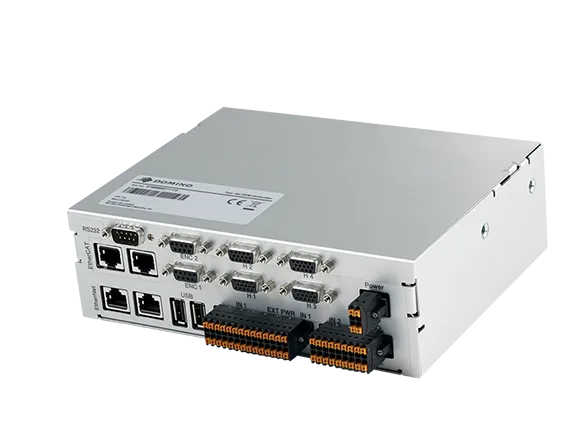

The specialist for complete integration into production machinery

GP: 12.7mm
EXT: 26.1mm

12.7mm (one printhead), up to 52.2mm (two printheads stitched)*

12.7mm (one printhead), up to 104.3mm (four printheads stitched)*

GP: 300x300 DPI up to 76m/min
EXT: 300X300 DPI up to 60m/min

60 DPI up to 300m/min (Standard, compact and EXT)
60 DPI up to 228m/min (OPT)

1 remote printhead

up to 2 printheads for increased message height or individual printing on 2 different print positions

up to 4 printheads for increased message height or individual printing on up to 4 different print positions

155mm x 111.6mm x 44.6mm Weight: 622g

75mm x 224mm x 156.5mm Weight: 1.55kg

123.9mm x 322.4mm x 250.7mm Weight: 6.4kg

64mm x 200mm x159.2mm Weight: 0.692kg

GP, EXT

Standard, compact, EXT and OPT

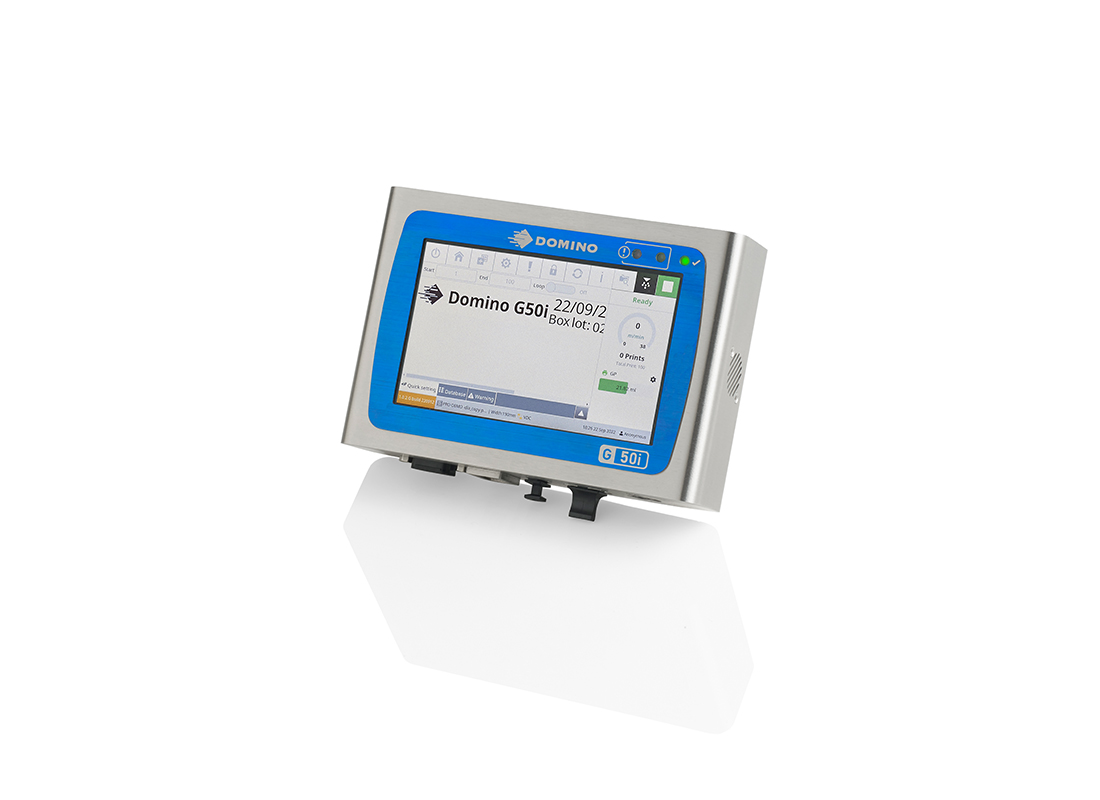

5" colour touch screen

QuickStep via 7" touch screen or customer HMI

QuickStep via 10" touch screen or customer HMI

QuickStep via customer HMI

TCP/IP (RJ45) and COM (RS485) for database, barcode scanners, checkweighers

Ethernet / Dynamark protocol, EDC (serial, TCP, USB)

Ethernet / Dynamark protocol, EDC (serial, TCP, USB) optional: fieldbus protocols

Not available

Bulk Ink system for long-run operation, AutoSwap for uninterrupted production

View

Food
Pharmaceuticals
Industrial
Tobacco
Life sciences: Legally compliant implementation of pharmaceutical legislation in accordance with GS1 standards (such as EU Falsification Protection Regulation 2016/161, US DQSA) & inclusion in systems validated according to 21 CFR Part 11.

High resolution at the highest speeds
Small footprint
Efficient ink system
Improved line efficiency
Range of inks
Simple to use

Trusted thermal inkjet (TIJ) printing solutions

Gx-Series thermal inkjet printing solutions are versatile, easy to integrate, easy to operate - the perfect fit on many printing applications and substrates. With the latest networking technology and producing graphic code quality, the Gx-Series TIJ printers are ideal not only for batch and date coding but also for complex code formats, check weighing and track & trace applications across FMCG industries.

The new range, with the exception of the G50i, is fully compatible with Industry 4.0 standards using the Domino Cloud. Domino Cloud allows remote capability, providing the data and tools to ensure printing is a contributor to better packaging and processing systems management.

If you are looking for a coding solution that is designed for high-resolution printing at high line speeds with complete reliability Gx-Series TIJ printers can meet your needs.

Clean. Clear. Coding.

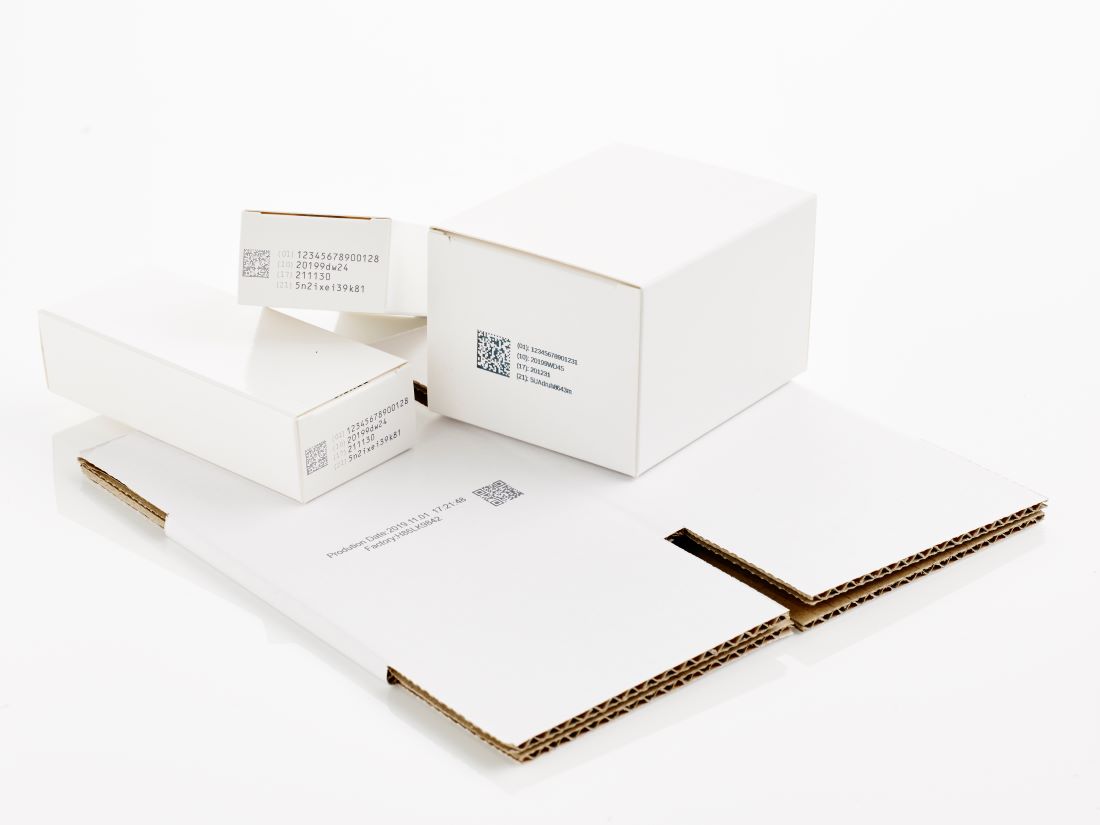

Graphic printing quality, on paper, card, plastic, metal and many other materials
Flexible label design: text, counters, clocks, graphics, logos, barcodes can all be included on the same label
Grade A code readability (ISO 15415) using Domino's inks on high-density DataMatrix codes

Fast moving consumer goods

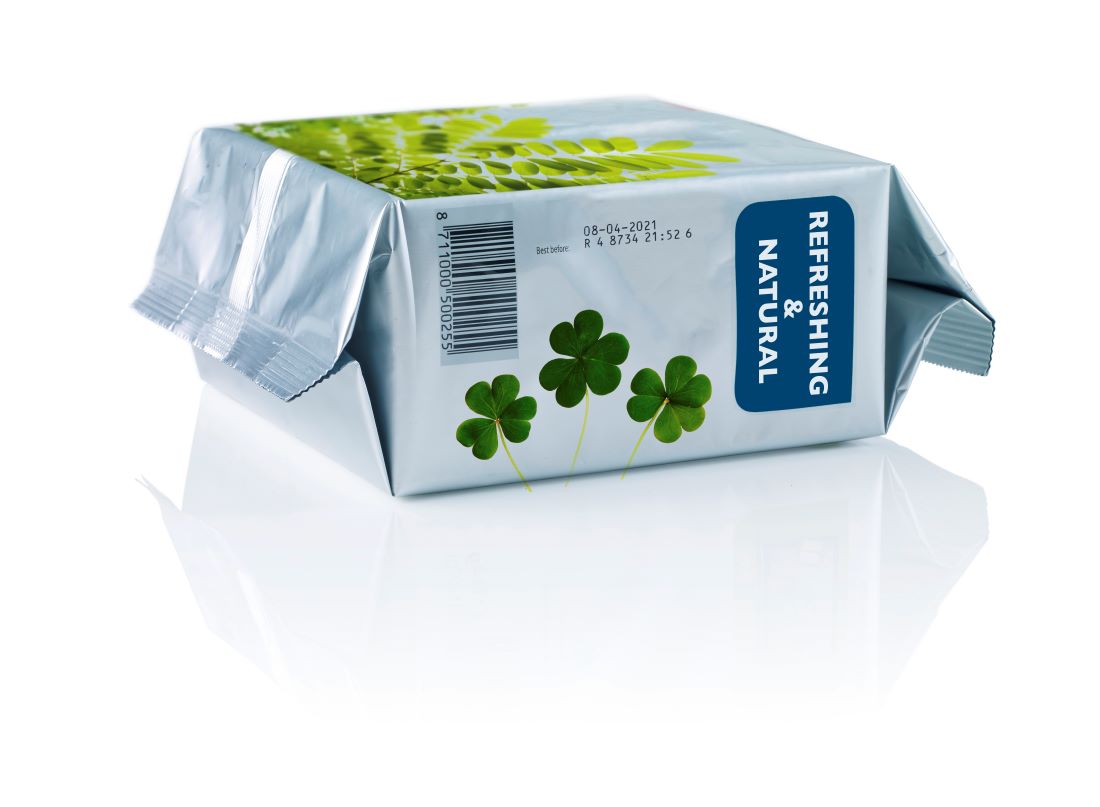

For the variety of coding requirements within the FMCG sectors, Domino has developed an ink range that is suitable for all packaging levels. From flexible films to porous shelf-ready packaging and shipping boxes.

Life sciences

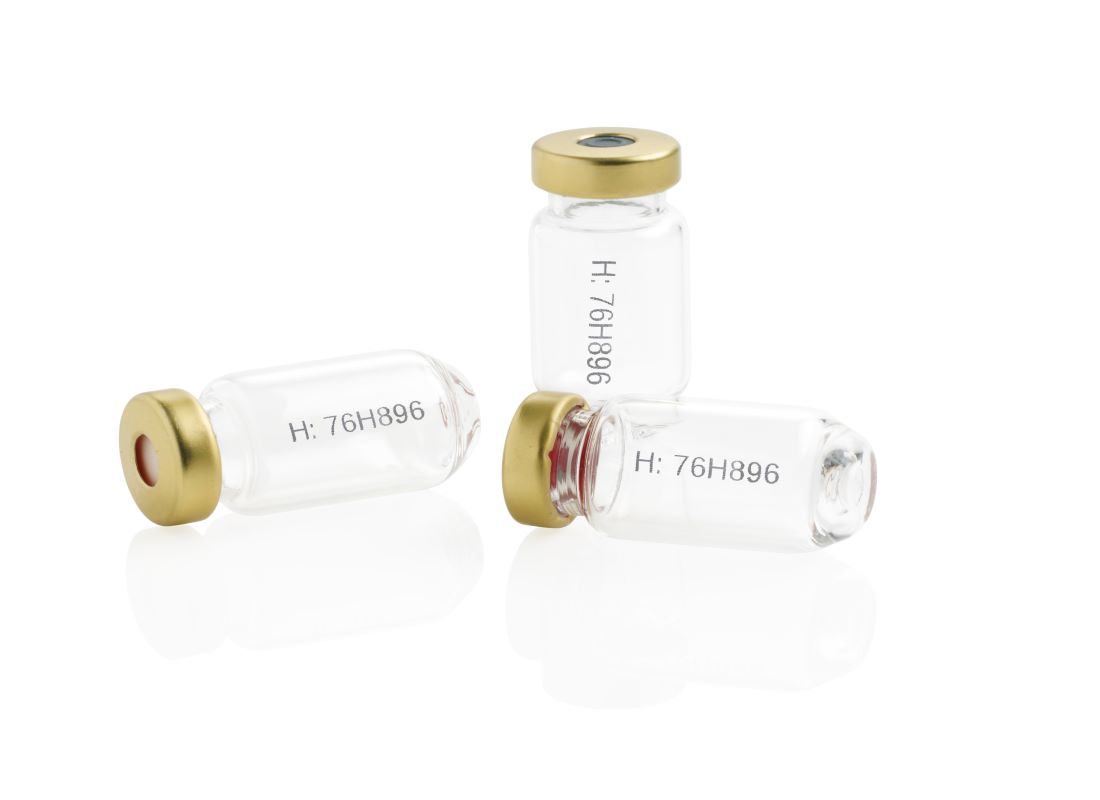

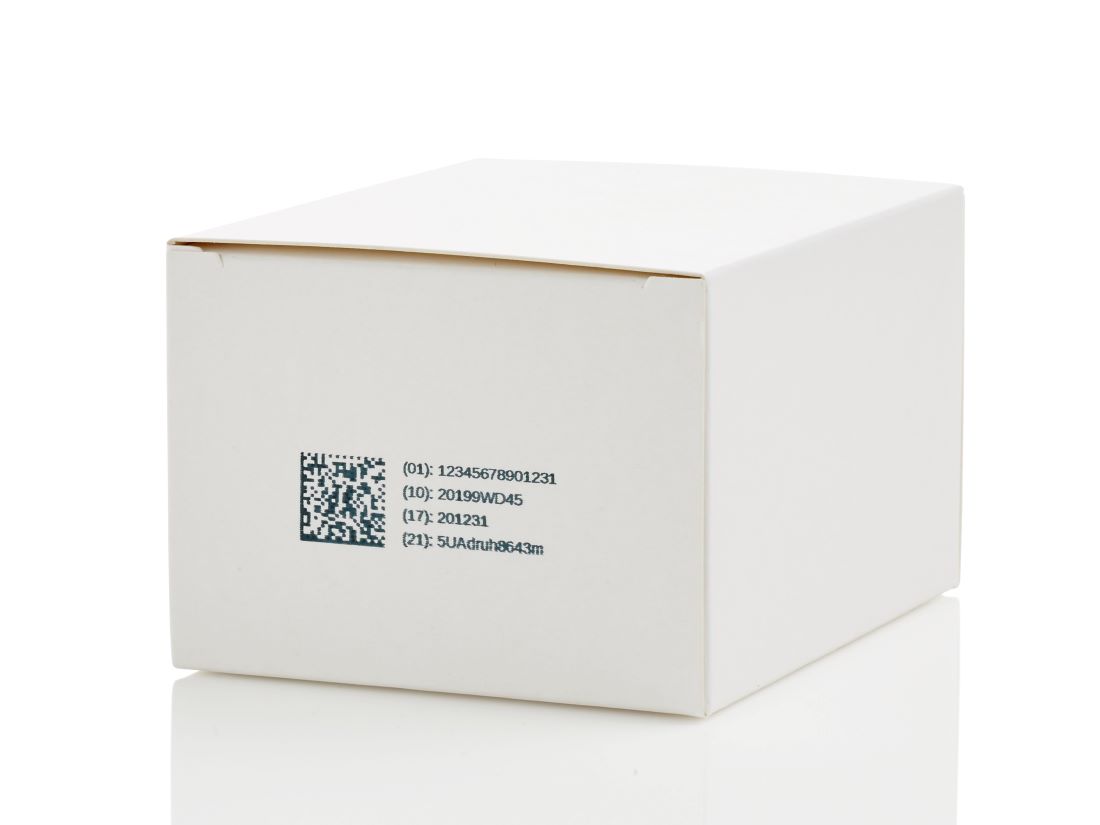

Legislative requirements call for unique item-level identification. Gx-Series printers ensure coding in compliance with pharmaceutical regulations (e.g. EU FMD, US DQSA) according to GS1 standards and can be included in a 21 CFR Part 11 validated system.

Electronics and industrial

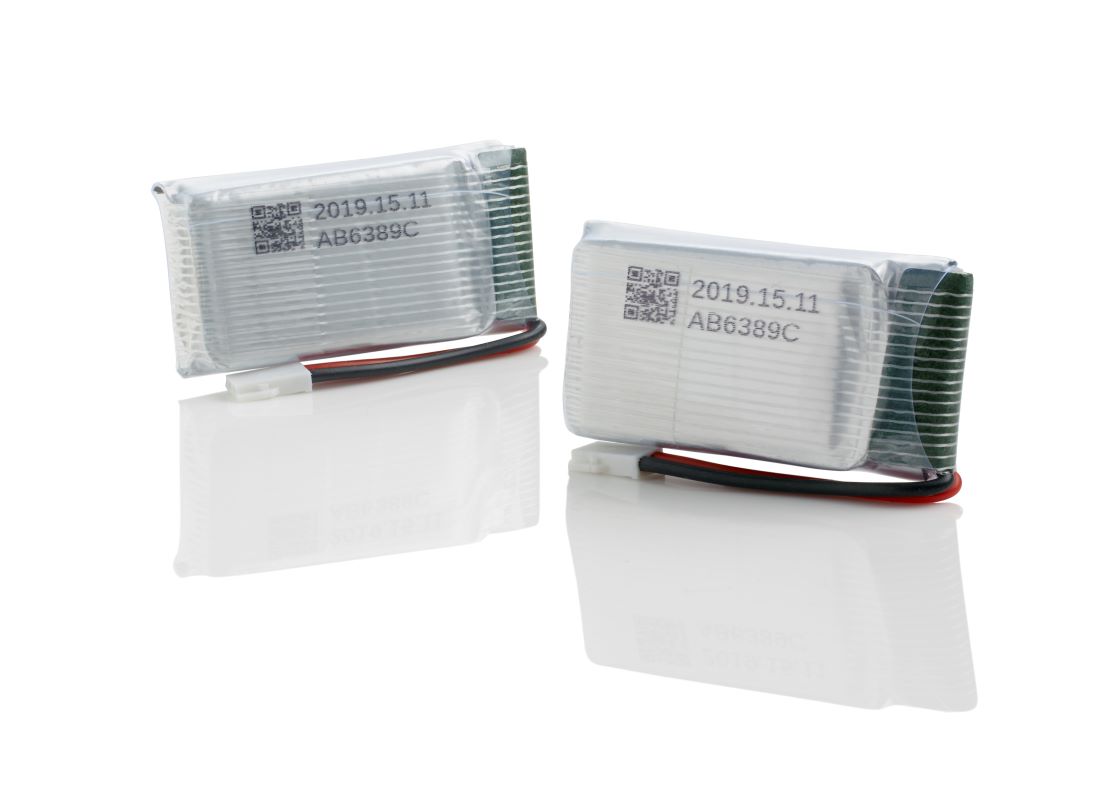

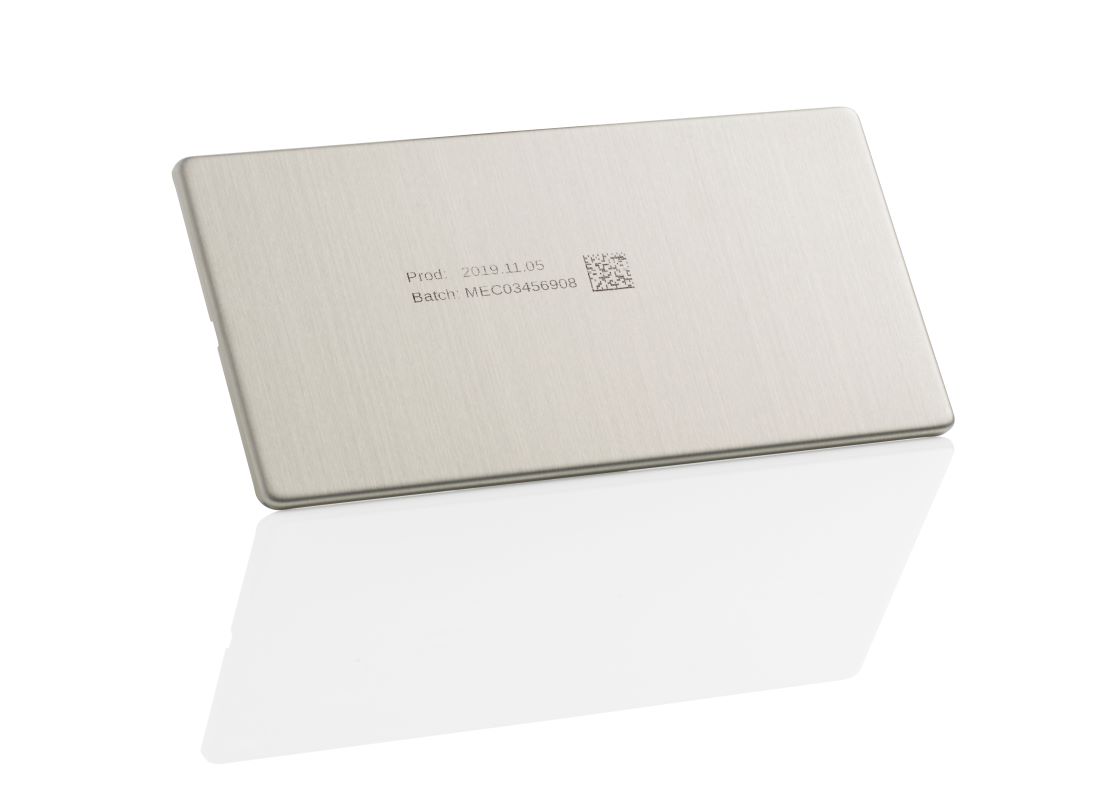

Gx-Series prints lasting, rub and scratch resistant codes, logos and graphics on electronic components, metal, aluminium or PCBs. Rapid dry times and good adhesion deliver optimum performance on fast-paced production lines.

* Printhead variant dependent - contact us to discuss your requirements
